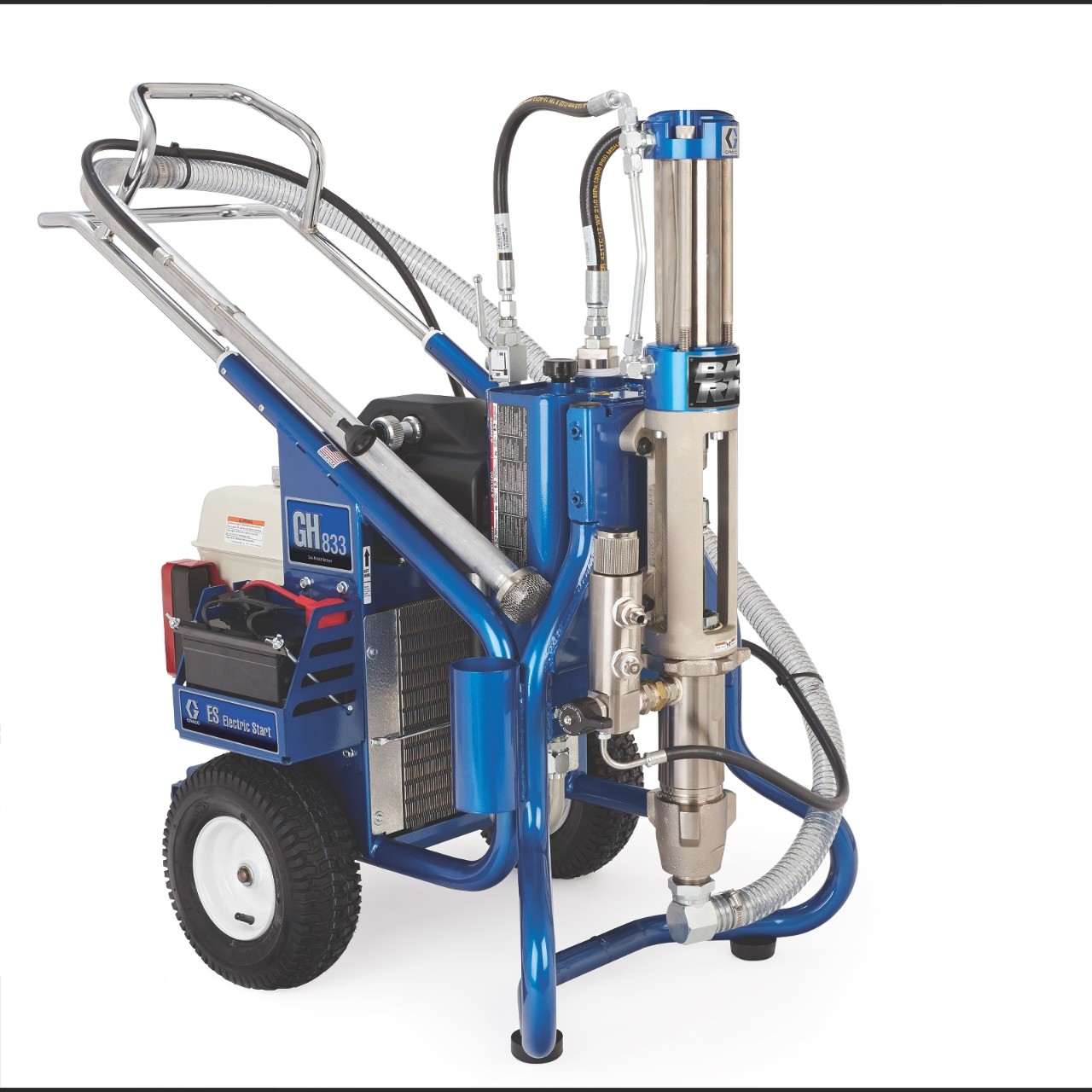

GH 833ES Big Rig Petrol Hydraulic Sprayer, Bare

16V258

GH

GH 833ES Big Rig Petrol Hydraulic Sprayer, Bare

16V258

The GH 833ES is the preferred choice for high production professional contractors who spray a wide range of materials. This jobsite-proven workhorse is the answer when you demand ruggedness, performance and value.
Questions about this product?

Evaluating our products and need advice
before you buy?

Contact Us

Features

Product Brochure
The GH 833ES is the preferred choice for high production professional contractors who spray a wide range of materials. This jobsite-proven workhorse is the answer when you demand ruggedness, performance and value.

High production architectural coatings, bridges, waterproofing and air barrier, roofing, fire proofing and protective & marine coatings: spray the most aggressive applications, without the need of an expensive air compressor to carry around.

  • Honda® Engine with Electric Start
    • 390 cc (13 HP) engine with integrated fuel tank to deliver maximum performance
    • Contractor preferred engine with Oil Alert
    • Back-up Pull Start
    • High-capacity, 12 Volt 18 Amp Charging System
  • Heavy-Duty Cooling System
    • Large 15 litre (4 gallon) hydraulic reservoir
    • Return line hydraulic filter extends life
    • No special hydraulic fluid needed
    • Proven cooler and blower system
    • Easy to use drain plug
  • Heavy-Duty Graco Hydraulic System
    • Faster, more responsive changeover
    • O-ring sealed to eliminate leaks
    • High-precision pressure control
    • No hydraulic reset button needed
    • Durable hydraulic lines for long life
  • Rugged, Heavy-Duty Steel Frame
    • Easy-roll tubed pneumatic tyres
    • Enamel painted steel tubing – corrosion protection
    • Multi-function design converts to skid mount in seconds
  • MaxLife Endurance Pump
    • Proven design and performance
    • Only 16 cycles per gallon
    • Exclusive MaxLife rod and sleeve delivers unmatched durability and life – Graco’s best
    • Exclusive QuikChange Pump System and QuikAccess Intake Valve eliminates downtime
  • Flow-Through Filter System
    • Inside/out design eliminates clogged filters
    • Eliminates tip clogs
  • Additional Features
    • Hose rack
    • Large diameter 1.5 in. ID PVC siphon set
    • Lockable pressure control knob
    • Grounding wire for safety with solvent materials

Specifications & Documents

Technical Specifications

Convert to Imperial
Compatible Material Primer, Acrylics, Latex, Block Filler, Drywall Mud, Asphalt, Roof Coating, Epoxy Coating, Elastomeric Coating
Control Type N/A
Convertible No
Engine Brand Honda
Engine Size (HP) 13
Engine Size (kW) 9.6941
Fluid Inlet Size (in) 11-1/2
Fluid Inlet Thread Type NPT
Fluid Outlet Size (in) 11-1/2
Fluid Outlet Thread Type NPT
Frame Configuration Cart
Includes Siphon Set
Material Application Paints, Primers
Maximum Flow Rate (GPM) 4.0
Maximum Sound Pressure Level (dB(A)) 91
Maximum Tip Size (in) 0.065
Maximum Tip Size 1 Gun (in) 0.065
Maximum Tip Size 2 Guns (in) 0.046
Maximum Tip Size 3 Guns (in) 0.037
Maximum Tip Size 4 Guns (in) 0.032
Maximum Tip Size 5 Guns (in) 0.028
Maximum Tip Size 6 Guns (in) 0.026
Maximum Working Pressure (MPa) 27.6
Maximum Working Pressure (psi) 4000
Model GH
Motor Type Hydraulic Motor
Number of Guns 6
Outlet Paint Filter 60 Mesh Stainless Steel Screen
Power Rating (HP) 13
Power Rating (W) 9694.1
Power Rating (kW) 9.7
Power Source Gas Hydraulic
Product Type Single Leg
Pump Rod Type MaxLife
Pump Type Endurance
Series 833ES
Standards Met CE
Type Airless Sprayer
Weight (lb) 398
Compatible Material Primer, Acrylics, Latex, Block Filler, Drywall Mud, Asphalt, Roof Coating, Epoxy Coating, Elastomeric Coating
Control Type N/A
Convertible No
Engine Brand Honda
Engine Size (HP) 13
Engine Size (kW) 9.6941
Fluid Inlet Size (cm) 29.21
Fluid Inlet Size (mm) 292.1
Fluid Inlet Thread Type NPT
Fluid Outlet Size (cm) 29.21
Fluid Outlet Size (mm) 292.1
Fluid Outlet Thread Type NPT
Frame Configuration Cart
Includes Siphon Set
Material Application Paints, Primers
Maximum Flow Rate (L/min) 15.1
Maximum Sound Pressure Level (dB(A)) 91
Maximum Tip Size (cm) 0.1651
Maximum Tip Size (mm) 1.651
Maximum Tip Size 1 Gun (cm) 0.1651
Maximum Tip Size 1 Gun (mm) 1.651
Maximum Tip Size 2 Guns (cm) 0
Maximum Tip Size 2 Guns (mm) 1
Maximum Tip Size 3 Guns (cm) 0
Maximum Tip Size 3 Guns (mm) 1
Maximum Tip Size 4 Guns (cm) 0
Maximum Tip Size 4 Guns (mm) 1
Maximum Tip Size 5 Guns (cm) 0
Maximum Tip Size 5 Guns (mm) 1
Maximum Tip Size 6 Guns (cm) 0
Maximum Tip Size 6 Guns (mm) 1
Maximum Working Pressure (MPa) 27.6
Maximum Working Pressure (bar) 275.8
Maximum Working Pressure (kPa) 27580
Model GH
Motor Type Hydraulic Motor
Number of Guns 6
Outlet Paint Filter 60 Mesh Stainless Steel Screen
Power Rating (HP) 13
Power Rating (W) 9694.1
Power Rating (cc) 390
Power Rating (kW) 9.7
Power Source Gas Hydraulic
Product Type Single Leg
Pump Rod Type MaxLife
Pump Type Endurance
Series 833ES
Standards Met CE
Type Airless Sprayer
Weight (kg) 181
