GH 833 Petrol Hydraulic Sprayer, Bare
Part Number: 253471
GH 833 bare
GH 833
GH 833 Petrol Hydraulic Sprayer, Bare
Part Number: 253471
The GH 833 is the preferred choice for high production professional contractors who spray a wide range of materials. This jobsite-proven workhorse is the answer when you demand ruggedness, performance and value.
Features
Product Brochure
The GH 833 is the preferred choice for high production professional contractors who spray a wide range of materials. This jobsite-proven workhorse is the answer when you demand ruggedness, performance and value.
High production architectural coatings, bridges, waterproofing and air barrier, roofing, fire proofing and protective & marine coatings: spray the most aggressive applications, without the need of an expensive air compressor to carry around.
- Honda® 390cc (13HP) Engine
- Reliable and easy-to-start
- Contractor-preferred - excellent power and proven reliability
- Oil Alert shuts down engine to prevent damage if oil level drops too low
- Heavy-Duty Hydraulic System
- Faster, more responsive changeover
- O-ring sealed to eliminate leaks
- High-precision pressure control
- No hydraulic reset button needed
- Durable hydraulic lines for long life
- Heavy-Duty Cooling System
- Large 15 litres hydraulic reservoir reducing downtime
- Return line hydraulic filter extends life
- Proven cooler and blower system
- No special hydraulic fluid needed and easy-to-use drain plug
- Heavy-Duty Steel Frame
- Large pneumatic wheels roll over rough terrains
- Enamel painted, sturdy welded frame protects against corrosion
- Multi-function design converts into a skid mount in seconds
- MaxLife Endurance Pump
- Proven design and performance
- Only 16 cycles per gallon
- Exclusive MaxLife piston rod and sleeve delivers unmatched durability and life - Graco’s best
- Long life V-max Blue™ packings
- Exclusive QuikAccess Intake Valve eliminates downtime
- Additional Features
- Hose rack
- Large diameter 1.5 in. ID PVC siphon set
- Lockable pressure control knob
- Grounding wire for safety with solvent materials
Specifications & Documents
Technical Specifications
Convert to Imperial| Compatible Material | Primer, Acrylics, Latex, Block Filler, Drywall Mud, Asphalt, Roof Coating, Epoxy Coating, Elastomeric Coating |
|---|---|
| Control Type | N/A |
| Engine Size (HP) | 13 |
| Engine Size (kW) | 9.7 |
| Fluid Inlet Size (in) | 11-1/2 |
| Fluid Inlet Thread Type | NPT |
| Fluid Outlet Size (in) | 11-1/2 |
| Fluid Outlet Thread Type | NPT |
| Frame Configuration | Cart |
| Includes | Siphon Set |
| Maximum Flow Rate (GPM) | 4.0 |
| Maximum Sound Pressure Level (dB(A)) | 91 |
| Maximum Tip Size (in) | 0.065 |
| Maximum Tip Size 1 Gun (in) | 0.065 |
| Maximum Tip Size 2 Guns (in) | 0.046 |
| Maximum Tip Size 3 Guns (in) | 0.037 |
| Maximum Tip Size 4 Guns (in) | 0.032 |
| Maximum Tip Size 5 Guns (in) | 0.028 |
| Maximum Tip Size 6 Guns (in) | 0.026 |
| Maximum Working Pressure (psi) | 4000 |
| Model | GH |
| Motor Type | Hydraulic Motor |
| Power Rating (HP) | 13 |
| Power Rating (kW) | 9.7 |
| Power Source | Gas Hydraulic |
| Product Type | Single Leg |
| Pump Rod Type | MaxLife |
| Pump Type | Endurance |
| Series | 833 |
| Type | Airless Sprayer |
| Weight (lb) | 360 |
| Compatible Material | Primer, Acrylics, Latex, Block Filler, Drywall Mud, Asphalt, Roof Coating, Epoxy Coating, Elastomeric Coating |
| Control Type | N/A |
| Engine Size (kW) | 9.7 |
| Fluid Inlet Size (in) | 11-1/2 |
| Fluid Inlet Thread Type | NPT |
| Fluid Outlet Size (in) | 11-1/2 |
| Fluid Outlet Thread Type | NPT |
| Frame Configuration | Cart |
| Includes | Siphon Set |
| Maximum Flow Rate (L/min) | 15.1 |
| Maximum Sound Pressure Level (dB(A)) | 91 |
| Maximum Tip Size (in) | 0.065 |
| Maximum Tip Size 1 Gun (in) | 0.065 |
| Maximum Tip Size 2 Guns (in) | 0.046 |
| Maximum Tip Size 3 Guns (in) | 0.037 |
| Maximum Tip Size 4 Guns (in) | 0.032 |
| Maximum Tip Size 5 Guns (in) | 0.028 |
| Maximum Tip Size 6 Guns (in) | 0.026 |
| Maximum Working Pressure (bar) | 276 |
| Maximum Working Pressure (kPa) | 2760 |
| Maximum Working Pressure (psi) | 4000 |
| Model | GH |
| Motor Type | Hydraulic Motor |
| Power Rating (cc) | 390 |
| Power Rating (kW) | 9.7 |
| Power Source | Gas Hydraulic |
| Product Type | Single Leg |
| Pump Rod Type | MaxLife |
| Pump Type | Endurance |
| Series | 833 |
| Type | Airless Sprayer |
| Weight (kg) | 163 |
Product Manuals
Sales Literature
Repair Parts
| Part No. | Description |
|---|---|
| 244068 | Easy Out Pump Manifold Filter, Long, 100 mesh |
| 244069 | Easy Out Pump Manifold Filter, Long, 200 mesh |
| 244071 | Easy Out Pump Manifold Filter, Long, 30 mesh |
| 244067 | Easy Out Pump Manifold Filter, Long, 60 mesh |

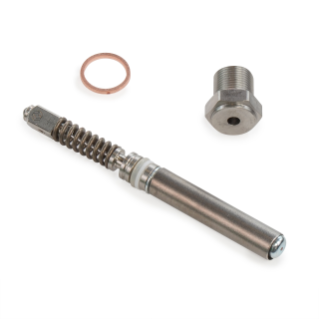

| 245103 | Q KIT REPAIR, DRAIN VALVE |
| 287870 | KIT, REPAIR, PACKING, HYDR. |
| 287834 | KIT, REPAIR, PUMP |
| 237840 | Inlet Strainer, SST Cap, 1 1/4 in. |
| 287916 | GB KIT, SUCT. HOSE-NON SLVT RES |
| 117285 | PACKING, O-RING |
| 15C766 | TUBE, DIFFUSION |
