M2K

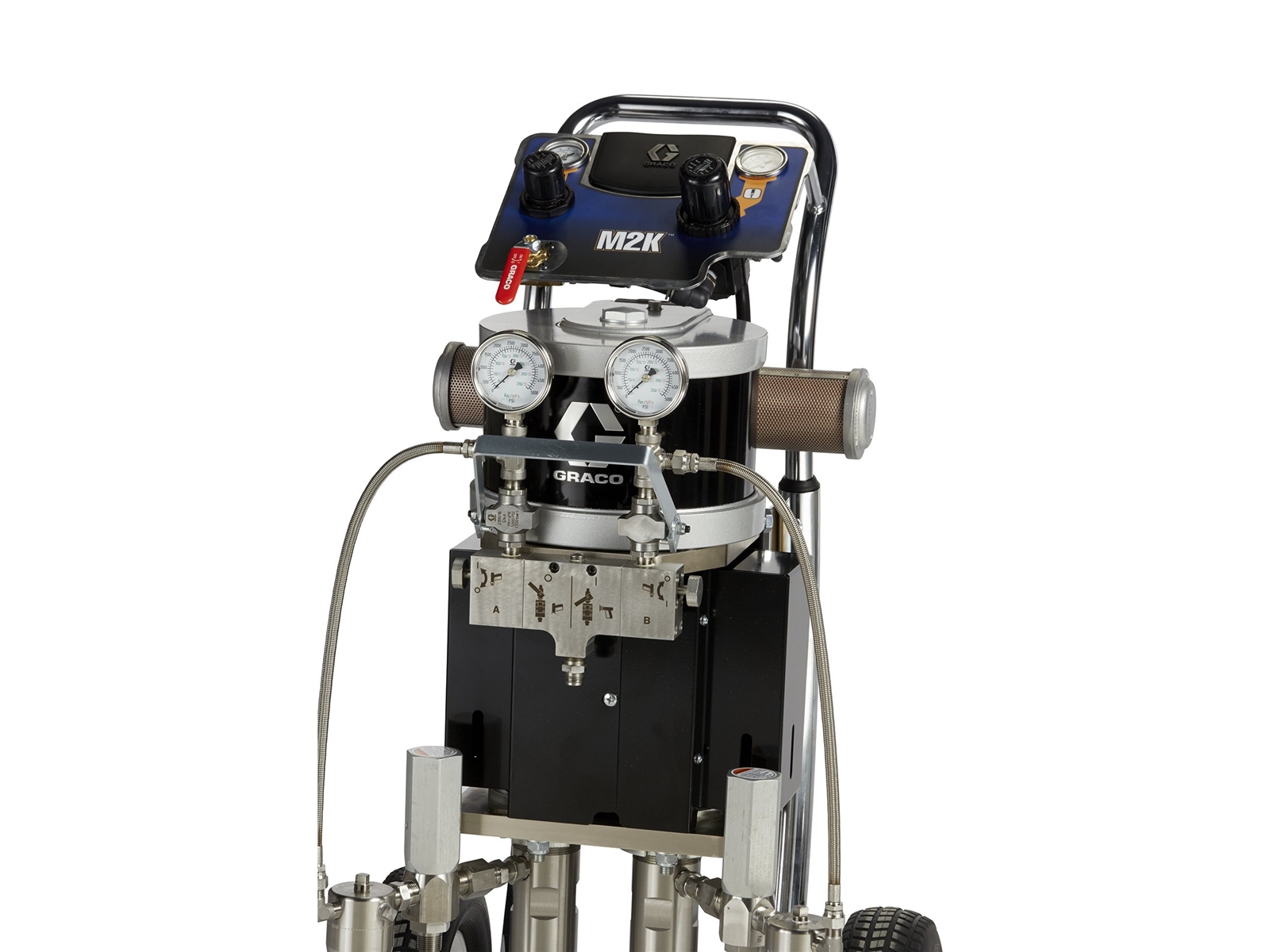

1:1 M2K Airless Mechanical Proportioner Package, cart mount, Silver Plus gun, remote mix manifold
Part Number: 24W609
Image is for illustrative purposes only.
M2K
1:1 M2K Airless Mechanical Proportioner Package, cart mount, Silver Plus gun, remote mix manifold
Part Number: 24W609
Upgrade from hand mixing to the efficient M2K mechanical sprayer. M2K Airless is ideal for quickly applying high
volumes of protective coatings to large surfaces.
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
Upgrade from hand mixing to the efficient M2K mechanical sprayer. M2K Airless is ideal for quickly applying high
volumes of protective coatings to large surfaces.
- Increase mix material accuracy to improve finish quality and reduce material waste, compared to hand mixing
- Compact size makes it faster and easier to flush, saving you time and disposal costs
- Ideal for lower volume two component epoxy, polyurethane and polyester materials
Specifications & Documents
Technical Specifications
Convert to Metric| Component Type | Two Component |
|---|---|
| Construction | PTFE, PEEK, Stainless Steel, Tungsten Carbide, UHMWPE |
| Fluid to Air Ratio | 24:1 |
| Gun Activation | Manual |
| Includes | Silver Plus Gun, Remote Mix Manifold |
| Material Type | Two Component |
| Maximum Flow Rate (GPM) | 0.2 |
| Maximum Hose Length (ft) | 25 |
| Maximum Number of Colors | 1 |
| Maximum Working Pressure (MPa) | 20.7 |
| Maximum Working Pressure (psi) | 3000 |
| Mix Ratio | 1:1 |
| Model | M2K |
| Number of Color Valves | N/A |
| Proportioner Type | Mechanical |
| Proportioning Type | Manual Mechanical |
| Type | Airless Sprayer |
| Weight (lb) | 135 |
| Component Type | Two Component |
| Construction | PTFE, PEEK, Stainless Steel, Tungsten Carbide, UHMWPE |
| Fluid to Air Ratio | 24:1 |
| Gun Activation | Manual |
| Includes | Silver Plus Gun, Remote Mix Manifold |
| Material Type | Two Component |
| Maximum Flow Rate (L/min) | 0.75 |
| Maximum Hose Length (m) | 7.5 |
| Maximum Number of Colors | 1 |
| Maximum Working Pressure (MPa) | 20.7 |
| Maximum Working Pressure (bar) | 207 |
| Maximum Working Pressure (kPa) | 20700 |
| Maximum Working Pressure (psi) | 3000 |
| Mix Ratio | 1:1 |
| Model | M2K |
| Number of Color Valves | N/A |
| Proportioner Type | Mechanical |
| Proportioning Type | Manual Mechanical |
| Pump Lower A Size (cc) | 25 |
| Pump Lower B Size (cc) | 25 |
| Type | Airless Sprayer |
| Weight (kg) | 61 |
Product Manuals
CAD Drawings
24W609-3D-EN.zip
(18 MB)
Sales Literature
Certifications
MSD201EN, Loctite 567 Low Strength Thread Sealant, Safety Data Sheet, English
(141 KB)
(English Only)
Repair Parts
| Part No. | Description |
|---|---|
| LW025A | Merkur Wet-Cup Style Stainless Steel Displacement Pump, 25 cc, Chromex coated rod and 3 UHMWPE, 2 PTFE packings |
Operation & Service Videos
See how to set up, flush and spray with your M2K mechanical plural component system. Learn how to disassemble and reassemble the manifold so that the proportioner continues to work well.
