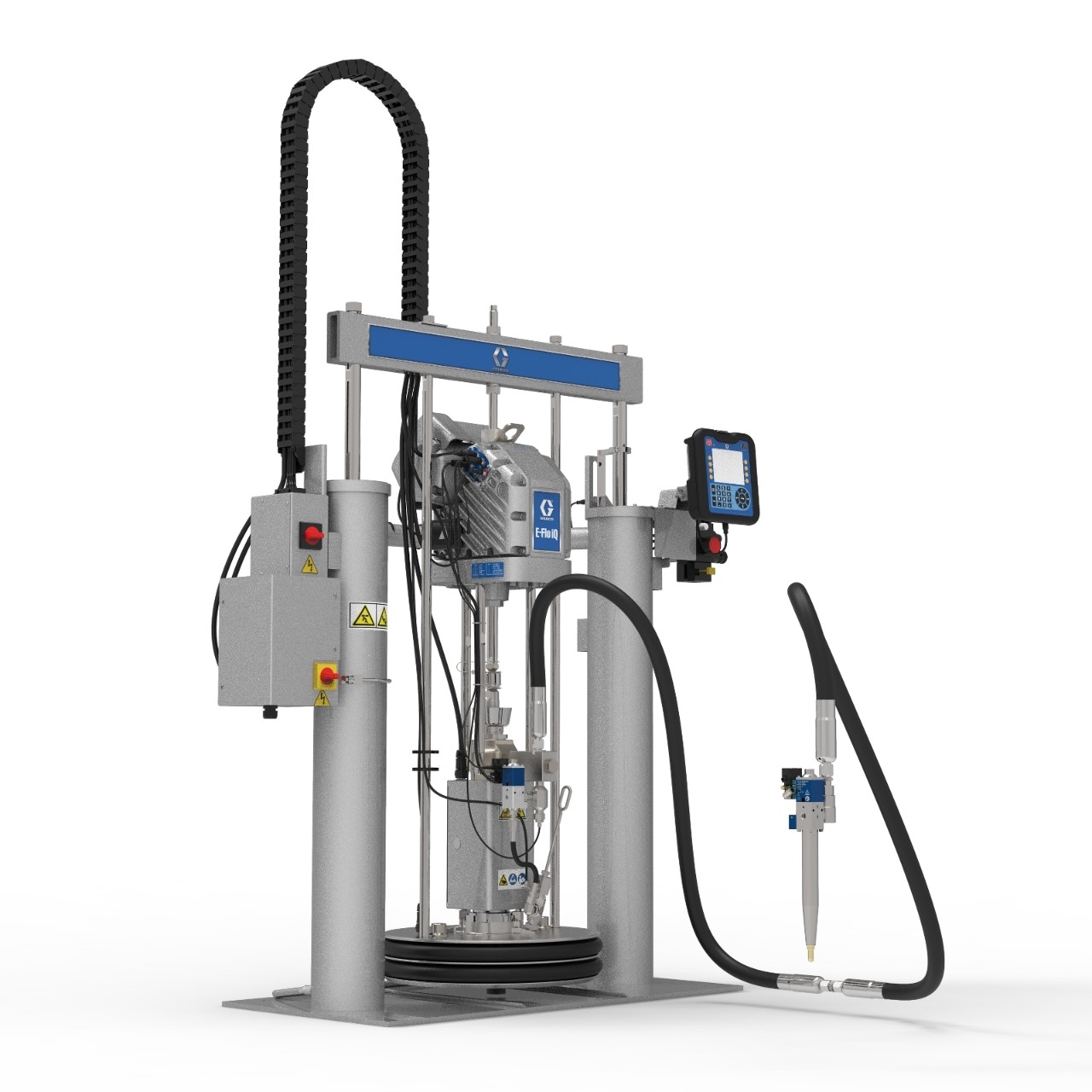

Single E-Flo iQ Metering & Dispensing System, Check-Mate 200cc, Heated 55 Gal. D200s
Part Number: E-Flo iQ-SH-D200s-55
Single E-Flo iQ Metering & Dispensing System, Check-Mate 200cc, Heated 55 Gal. D200s
Part Number: E-Flo iQ-SH-D200s-55
The E-Flo iQ Metering & Dispensing System our tank-to-tip metering system for single component sealants and adhesives. This dispensing solution was designed to meter directly from the drum, making it an intelligent system that delivers sustained in-plant performance, minimizes maintenance costs and ...
More Info
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
The E-Flo iQ Metering & Dispensing System our tank-to-tip metering system for single component sealants and adhesives. This dispensing solution was designed to meter directly from the drum, making it an intelligent system that delivers sustained in-plant performance, minimizes maintenance costs and reduces system complexity.
- Single Heated E-Flo iQ Supply System
- Delivers consistent control and accurate performance
- Quiet electric servo-driven motor for lower sound levels
- Provides continuous dispensing without the need to reload
- Available with either a Check-Mate Severe Duty or MaxLife lower for material compatibility
- High-Quality Heated Hoses
- Equipped with Graco hoses for proven performance
- Graco heated hoses are insulated for an accurate and uniform material temperature.
- Valves Suited for Your Dispense
- Available in a wide range of tip seal, snuff back and ball/seat models
- Compact and lightweight design allows for lower payload
- Available with different tip sizes for your application
- Offered in several nozzles lengths for vision system compatibility
- Easy and Simple Integration
- The communication gateway module (CGM) has integrated mapping of all of the programming data.
- Available protocols include EtherNet I/P, PROFINET, DeviceNet, or PROFIBUS.
Specifications & Documents
Technical Specifications
Convert to Metric| Air Inlet Size (in) | 3/4 |
|---|---|
| Ambient/Warm Melt/Hot Melt | Warm Melt |
| Applicator Type | Tip-Seal, Ball/Seat, Snuff Back |
| Configuration | Single |
| Construction | 319 Cast Aluminum, EPDM, Zinc-Plated Carbon Steel, 316 Stainless Steel, 17-4 Stainless Steel |
| Container Size | Drum |
| Fluid Outlet Size (in) | 1.0 |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Thread Type | NPT |
| Gateway | EtherNet/IP User Interface, PROFINET User Interface, PROFIBUS User Interface, DeviceNet User Interface |
| Input Cycle Rate (Hz) | 50/60 |
| Material Container Volume (gal) | 55 |
| Maximum Air Inlet Pressure (MPa) | 0.9 |
| Maximum Air Inlet Pressure (psi) | 125 |
| Maximum Ambient Temperature (°F) | 120 |
| Maximum Fluid Temperature (°F) | 158 |
| Maximum Fluid Viscosity (cP) | 3000000 |
| Maximum Fluid Working Pressure (MPa) | 28 |
| Maximum Fluid Working Pressure (psi) | 4000 |
| Maximum Hose Length (ft) | 50 |
| Maximum Working Pressure (MPa) | 28 |
| Maximum Working Pressure (psi) | 4000 |
| Minimum Ambient Temperature (°F) | 32 |
| Minimum Fluid Viscosity (cP) | 100000 |
| Minimum Voltage (V ac) | 200 |
| Phase | 1, 3 |
| Power Rating (HP) | 2.5 hp |
| Power Type | Electric, Pneumatic |
| Ram Post Diameter (in) | 6 |
| Sound Pressure Level (dB(A)) | < 70 |
| Type | Metering System |
| Air Inlet Size (in) | 3/4 |
| Air Inlet Size (mm) | 19 |
| Ambient/Warm Melt/Hot Melt | Warm Melt |
| Applicator Type | Tip-Seal, Ball/Seat, Snuff Back |
| Configuration | Single |
| Construction | 319 Cast Aluminum, EPDM, Zinc-Plated Carbon Steel, 316 Stainless Steel, 17-4 Stainless Steel |
| Container Size | Drum |
| Fluid Outlet Size (cm) | 2.54 |
| Fluid Outlet Size (in) | 1.0 |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Thread Type | NPT |
| Gateway | EtherNet/IP User Interface, PROFINET User Interface, PROFIBUS User Interface, DeviceNet User Interface |
| Input Cycle Rate (Hz) | 50/60 |
| Material Container Volume (l) | 200 |
| Maximum Air Inlet Pressure (MPa) | 0.9 |
| Maximum Air Inlet Pressure (bar) | 9 |
| Maximum Air Inlet Pressure (kPa) | 900 |
| Maximum Air Inlet Pressure (psi) | 125 |
| Maximum Ambient Temperature (°C) | 49 |
| Maximum Flow Rate (L/min) | 5.0 |
| Maximum Flow Rate (cc/min) | 5000 |
| Maximum Fluid Temperature (°C) | 70 |
| Maximum Fluid Viscosity (cP) | 3000000 |
| Maximum Fluid Working Pressure (MPa) | 28 |
| Maximum Fluid Working Pressure (bar) | 276 |
| Maximum Fluid Working Pressure (psi) | 4000 |
| Maximum Working Pressure (MPa) | 28 |
| Maximum Working Pressure (kPa) | 28000 |
| Maximum Working Pressure (psi) | 4000 |
| Minimum Ambient Temperature (°C) | 0 |
| Minimum Flow Rate (L/min) | 0.01 |
| Minimum Flow Rate (cc/min) | 10 |
| Minimum Fluid Viscosity (cP) | 100000 |
| Minimum Voltage (V ac) | 200 |
| Phase | 1, 3 |
| Power Type | Electric, Pneumatic |
| Sound Pressure Level (dB(A)) | < 70 |
| Type | Metering System |
