Merkur
3:1 Merkur Air Spray Package, 125cc, Cart, Pump/Gun Air Controls, Siphon Kit, Fluid Filter, No Applicator
Part Number: G03C03

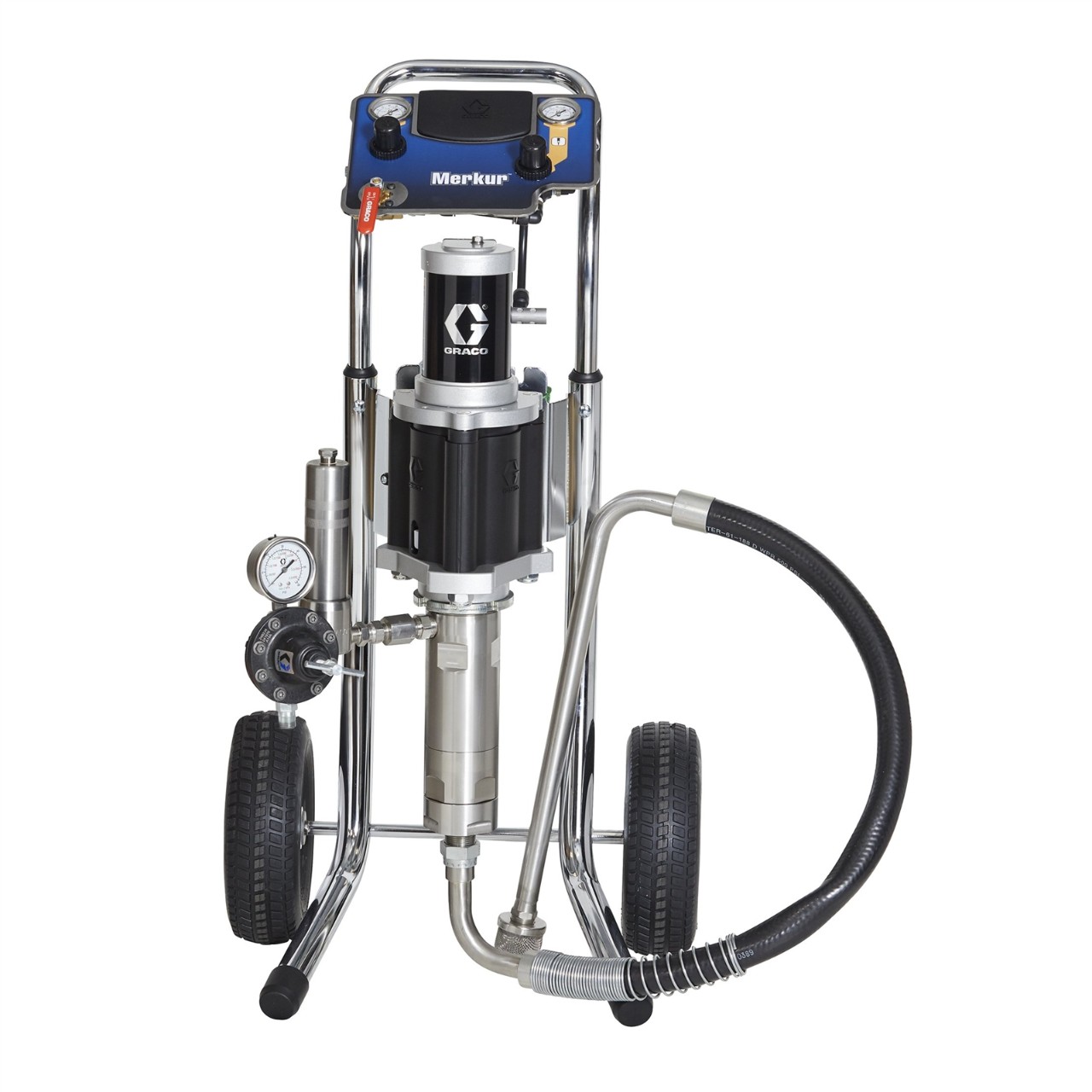

Image is for illustrative purposes only.
Merkur
3:1 Merkur Air Spray Package, 125cc, Cart, Pump/Gun Air Controls, Siphon Kit, Fluid Filter, No Applicator
Part Number: G03C03
Make the right choice for your finishing applications with Merkur Low Pressure Packages. The Merkur low-pressure piston pump comes with advanced air spray technology.
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
Make the right choice for your finishing applications with Merkur Low Pressure Packages. The Merkur low-pressure piston pump comes with advanced air spray technology.
- The pump lower has the best solution for smooth, low pulsation operation.
- The air motor operates efficiently with low air consumption.
- Cart mount configuration makes fine finish spraying easy in different locations.
Specifications & Documents
Technical Specifications
Convert to Metric| Construction | Stainless Steel, Tungsten Carbide, UHMWPE, PTFE, PEEK, FEP, Acetal, Nylon, Polyethylene |
|---|---|
| Fluid Inlet Size (in) | 1 |
| Fluid Inlet Thread Type | NPT |
| Fluid Outlet Size (in) | 1/2 |
| Fluid Outlet Thread Type | NPT |
| Gun Included | 0 |
| Gun Model | No Applicator |
| Gun Technology | Bare Package |
| Gun Type | No Applicator |
| Includes | Pump and Gun Air Controls, Siphon Kit, Fluid Filter |
| Maximum Air Pressure (psi) | 100 |
| Maximum Flow Rate (GPM) | 2 |
| Maximum Operating Temperature (°F) | 120 |
| Maximum Working Pressure (MPa) | 0.8 |
| Maximum Working Pressure (psi) | 120 |
| Model | Merkur |
| Mount Type | Cart Mount |
| Power Source | Air |
| Pressure Type | Low Pressure |
| Product Type | Bare Package |
| Pump Ratio | 3:1 |
| Pump Type | Pneumatic Piston Pump |
| Spray Type | No Applicator |
| Standards Met | FM Approved, ATEX, CE |
| Technology Type | Air Spray |
| Type | Air-Powered Sprayer |
| Construction | Stainless Steel, Tungsten Carbide, UHMWPE, PTFE, PEEK, FEP, Acetal, Nylon, Polyethylene |
| Fluid Inlet Size (cm) | 2.54 |
| Fluid Inlet Size (in) | 1 |
| Fluid Inlet Size (mm) | 25.4 |
| Fluid Inlet Thread Type | NPT |
| Fluid Outlet Size (cm) | 1.27 |
| Fluid Outlet Size (in) | 1/2 |
| Fluid Outlet Size (mm) | 12.7 |
| Fluid Outlet Thread Type | NPT |
| Gun Included | 0 |
| Gun Model | No Applicator |
| Gun Technology | Bare Package |
| Gun Type | No Applicator |
| Includes | Pump and Gun Air Controls, Siphon Kit, Fluid Filter |
| Maximum Air Pressure (bar) | 6.9 |
| Maximum Air Pressure (kPa) | 690 |
| Maximum Air Pressure (psi) | 100 |
| Maximum Flow Rate (L/min) | 7.5 |
| Maximum Operating Temperature (°C) | 49 |
| Maximum Working Pressure (MPa) | 0.8 |
| Maximum Working Pressure (bar) | 8.3 |
| Maximum Working Pressure (psi) | 120 |
| Model | Merkur |
| Mount Type | Cart Mount |
| Power Source | Air |
| Pressure Type | Low Pressure |
| Product Type | Bare Package |
| Pump Ratio | 3:1 |
| Pump Type | Pneumatic Piston Pump |
| Spray Type | No Applicator |
| Standards Met | FM Approved, ATEX, CE |
| Technology Type | Air Spray |
| Type | Air-Powered Sprayer |
