Viscount I

Viscount I 4-Ball Hydraulic Pump, SST, 1500cc Sealed Lower, Tri-Clamp, Ultralife™ Rod/Cylinder

Part Number: 17E235

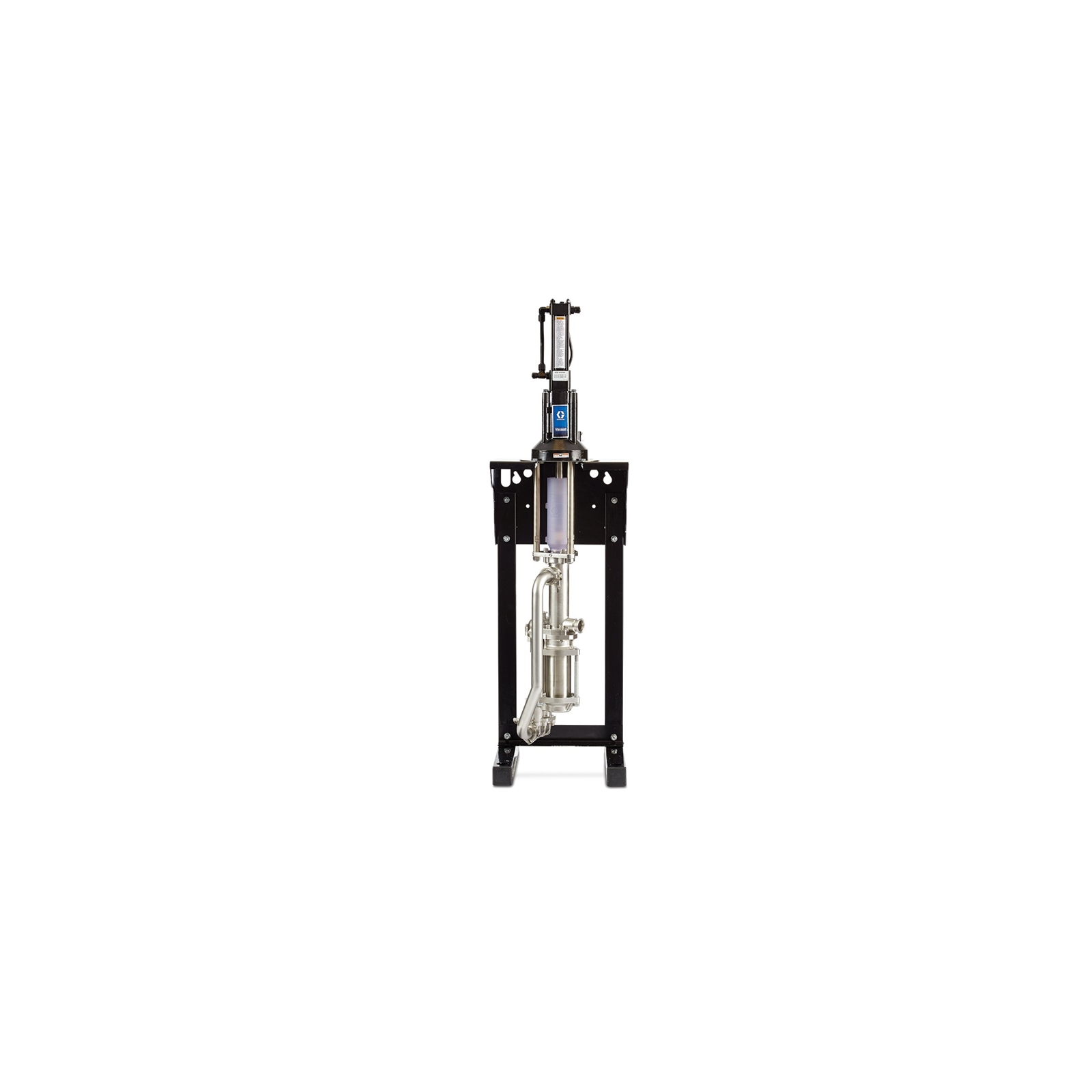

product image
Image is for illustrative purposes only.

Viscount I

Viscount I 4-Ball Hydraulic Pump, SST, 1500cc Sealed Lower, Tri-Clamp, Ultralife™ Rod/Cylinder

Part Number: 17E235

Graco's Viscount 4-Ball pumps are up to three times more efficient than comparable compressed air systems. Provides high volume output at lower cycle rates and produces low-shear output for metallic or waterborne paint circulation. The simplified lower design means fewer parts and fast, easy repairs... More Info
Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure
Graco's Viscount 4-Ball pumps are up to three times more efficient than comparable compressed air systems. Provides high volume output at lower cycle rates and produces low-shear output for metallic or waterborne paint circulation. The simplified lower design means fewer parts and fast, easy repairs for low cost of ownership.
  • Hydraulic-powered pumps for low pressure, high volume circulation of finishing materials
  • Produces low-shear output for metallic or waterborne paint circulation
  • Flushes easily and offers quick color changes

Specifications & Documents

Technical Specifications

Convert to Metric
Application Circulation
Compatible Material CARC, High Solids, Metallics, Solventborne, Stains, Topcoats, Varnish, Waterborne, Xirallic
Construction Stainless Steel
Fluid Inlet Size (in) 1-1/2
Fluid Inlet Thread Type Tri-Clamp
Fluid Outlet Size (in) 1-1/2
Fluid Outlet Thread Type Tri-Clamp
Fluid Section Type Sealed
Material Stainless Steel
Maximum Continuous Cycle Rate (CPM) 20
Maximum Flow Rate (GPM) 23.2
Maximum Hydraulic Fluid Inlet Pressure (psi) 1500
Maximum Intermittent Cycle Rate (CPM) 60
Maximum Operating Temperature (°F) 150
Maximum Working Pressure (MPa) 2.1
Maximum Working Pressure (psi) 300
Model Viscount
Portable Non-Portable
Series I
Type Hydraulic Piston Pump
Application Circulation
Compatible Material CARC, High Solids, Metallics, Solventborne, Stains, Topcoats, Varnish, Waterborne, Xirallic
Construction Stainless Steel
Fluid Inlet Size (in) 1-1/2
Fluid Inlet Size (mm) 38.1
Fluid Inlet Thread Type Tri-Clamp
Fluid Outlet Size (in) 1-1/2
Fluid Outlet Size (mm) 38.1
Fluid Outlet Thread Type Tri-Clamp
Fluid Section Type Sealed
Material Stainless Steel
Maximum Continuous Cycle Rate (CPM) 20
Maximum Flow Rate (L/min) 87.82
Maximum Hydraulic Fluid Inlet Pressure (bar) 103
Maximum Hydraulic Fluid Inlet Pressure (kPa) 10300
Maximum Hydraulic Fluid Inlet Pressure (psi) 1500
Maximum Intermittent Cycle Rate (CPM) 60
Maximum Operating Temperature (°C) 66
Maximum Working Pressure (MPa) 2.1
Maximum Working Pressure (bar) 21
Maximum Working Pressure (kPa) 2100
Maximum Working Pressure (psi) 300
Model Viscount
Portable Non-Portable
Series I
Type Hydraulic Piston Pump

Product Manuals

CAD Drawings

Sales Literature

345092EN Circulation Pumps (2 MB)
(English Only)
