HydroShield

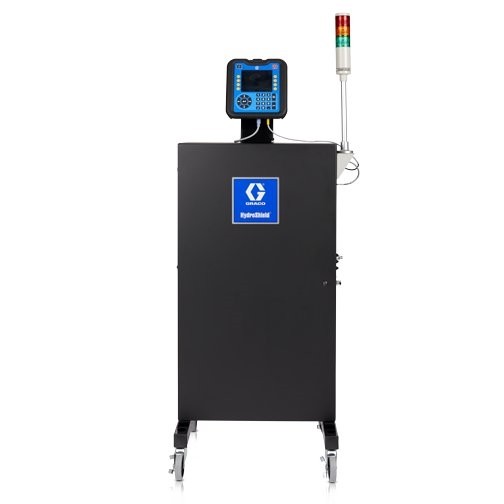

HydroShield isolation cabinet for Pro Xp manual air spray gun, purchase gun and hoses separately
Part Number: WMBL00
Image is for illustrative purposes only.
HydroShield
HydroShield isolation cabinet for Pro Xp manual air spray gun, purchase gun and hoses separately
Part Number: WMBL00
Proven reliability and unique control make the HydroShield Batch Waterborne System the most operator-friendly solution for using electrostatics to spray waterborne material.
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
Proven reliability and unique control make the HydroShield Batch Waterborne System the most operator-friendly solution for using electrostatics to spray waterborne material.

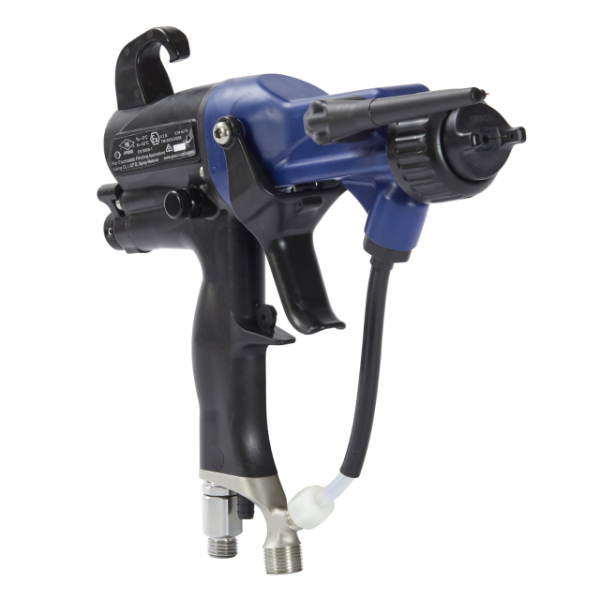

- Purchase Pro Xp60 WB Air Spray Manual Electrostatic Gun and hoses separately
- FM (Factory Mutual) and CE (Conformance European) approval means the electrostatic waterborne system has been tested and meets top safety standards.
Specifications & Documents
Technical Specifications
Convert to Metric| Amperage (A) | 2 |
|---|---|
| Application | Waterborne |
| Compatible Material | Waterborne, Single Components, WB Mold Release Agents |
| Construction | Stainless Steel, Acetal, UHMWPE, Fluoroelastomer, PEEK, Tungsten Wire, Polyethylene, PTFE, Polyurethane |
| Control Type | Control Interface |
| Feed Type | Suction Hose |
| Fluid Hose Inside Diameter (in) | 1/4" |
| Fluid Inlet Size (in) | 1/4 |
| Fluid Inlet Thread Type | NPSM |
| Gun Activation | Manual |
| Gun Included | 0 |
| Gun Model | Waterborne |
| Gun Technology | Electrostatic |
| Gun Type | Electrostatic |
| Material Application | Waterborne |
| Material Type | Waterborne |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Air Pressure (psi) | 100 |
| Maximum Hose Length (ft) | 100 |
| Maximum Operating Temperature (°F) | 120 |
| Maximum Working Pressure (MPa) | 0.7 |
| Maximum Working Pressure (psi) | 100 |
| Minimum Operating Temperature (°F) | 40 |
| Model | HydroShield |
| Mount Location | Stand Alone/Wall |
| Mount Type | Casters |
| Power Source | Air |
| Pressure Type | Low Pressure |
| Product Type | Spray Package |
| Pump Type | Pneumatic Pump |
| Sound Power Level (dB(A)) | 87 |
| Spray Gun Type | Electrostatic |
| Spray Type | Air Spray |
| Sprayer Type | Air Spray |
| Technology Type | Air Spray |
| Type | Air-Powered Sprayer |
| Amperage (A) | 2 |
| Application | Waterborne |
| Compatible Material | Waterborne, Single Components, WB Mold Release Agents |
| Construction | Stainless Steel, Acetal, UHMWPE, Fluoroelastomer, PEEK, Tungsten Wire, Polyethylene, PTFE, Polyurethane |
| Control Type | Control Interface |
| Feed Type | Suction Hose |
| Fluid Hose Inside Diameter (in) | 1/4" |
| Fluid Inlet Size (cm) | 0.63 |
| Fluid Inlet Size (in) | 1/4 |
| Fluid Inlet Size (mm) | 6.35 |
| Fluid Inlet Thread Type | NPSM |
| Gun Activation | Manual |
| Gun Included | 0 |
| Gun Model | Waterborne |
| Gun Technology | Electrostatic |
| Gun Type | Electrostatic |
| Material Application | Waterborne |
| Material Type | Waterborne |
| Maximum Air Inlet Pressure (bar) | 7 |
| Maximum Air Inlet Pressure (kPa) | 700 |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Air Pressure (bar) | 7 |
| Maximum Air Pressure (psi) | 100 |
| Maximum Hose Length (m) | 30.0 |
| Maximum Operating Temperature (°C) | 48 |
| Maximum Working Pressure (MPa) | 0.7 |
| Maximum Working Pressure (bar) | 7 |
| Maximum Working Pressure (kPa) | 700 |
| Maximum Working Pressure (psi) | 100 |
| Minimum Operating Temperature (°C) | 5 |
| Model | HydroShield |
| Mount Location | Stand Alone/Wall |
| Mount Type | Casters |
| Power Source | Air |
| Pressure Type | Low Pressure |
| Product Type | Spray Package |
| Pump Lower A Size (cc) | 1150 |
| Pump Type | Pneumatic Pump |
| Sound Power Level (dB(A)) | 87 |
| Spray Gun Type | Electrostatic |
| Spray Type | Air Spray |
| Sprayer Type | Air Spray |
| Technology Type | Air Spray |
| Type | Air-Powered Sprayer |
Product Manuals
Sales Literature
Related Products
Recommended Accessories
Installation & Operation Videos
Learn how to install and operate the HydroShield Air Spray Batch Isolation Waterborne System. See how it compares with air assisted airless units.
