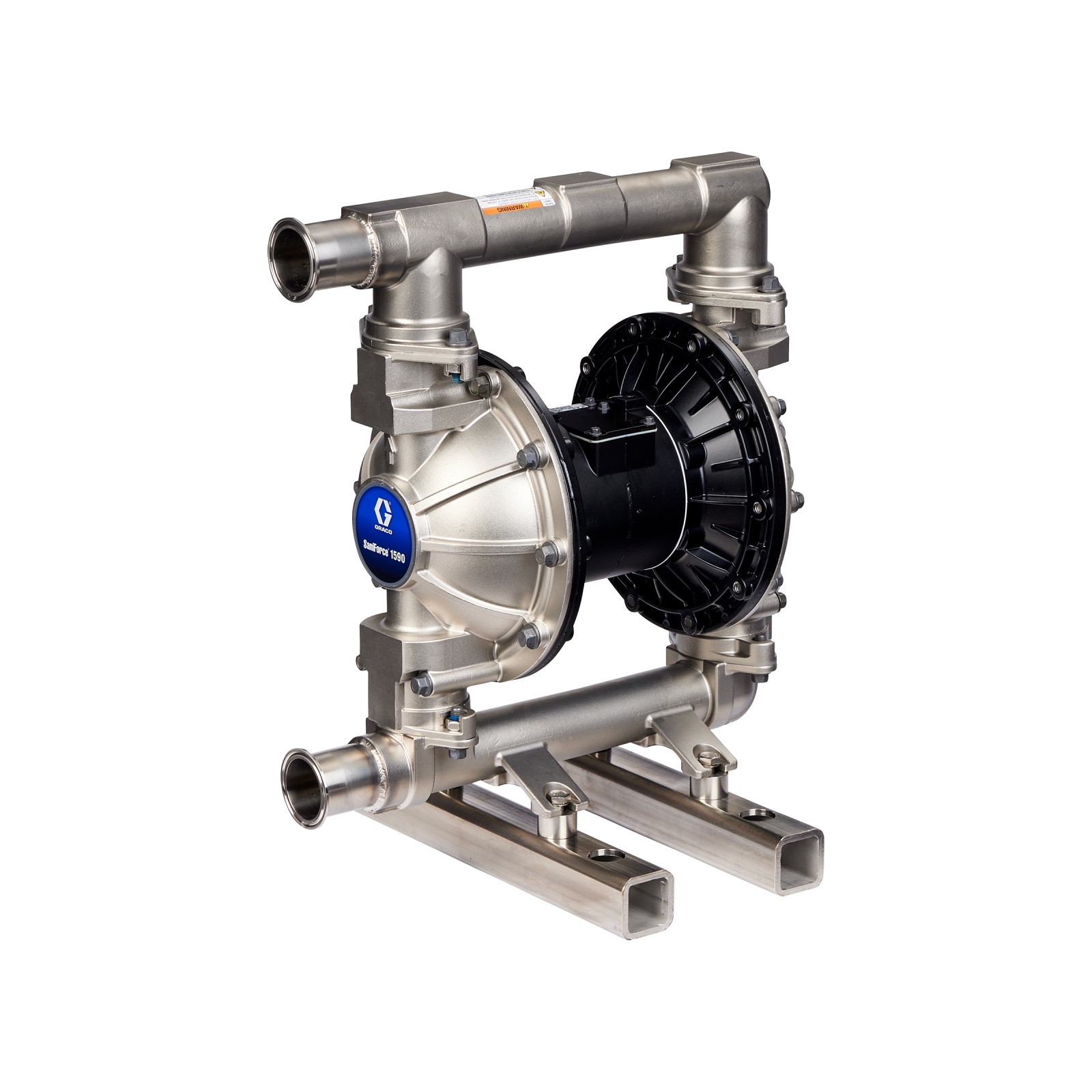

SaniForce 1050 BV
SaniForce 1050 Beverage Pump, 1" FG SST Pneumatic Diaphragm Pump, AL Center, SS Seats, CW Balls, SP Diaphragms
Part Number: 26D635
SaniForce 1050 BV
SaniForce 1050 Beverage Pump, 1" FG SST Pneumatic Diaphragm Pump, AL Center, SS Seats, CW Balls, SP Diaphragms
Part Number: 26D635
With a simple, easy-to-service design and high-quality construction, the SaniForce Beverage Pumps deliver consistent flow and efficient operation, making them a trusted choice for wineries, breweries, distilleries, and other beverage transfer operations. An expansion on Graco's proven air-operated d...
More Info
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
With a simple, easy-to-service design and high-quality construction, the SaniForce Beverage Pumps deliver consistent flow and efficient operation, making them a trusted choice for wineries, breweries, distilleries, and other beverage transfer operations. An expansion on Graco's proven air-operated double diaphragm pump technology, these pumps deliver exceptional reliability and durable performance.
The 1050 beverage pump delivers high performance with flow rates around 40 gpm and pressures of up to 120 psi. It can be mounted to a cart for additional flexibility to easily transfer material all around your facility, enabling efficient and reliable transfer and meeting your production demands.
- Hygienic Design
- 1.5 in (38mm) Tri-clamp fluid connections
- All fluid contact components are FDA compliant
- Internal components include stainless steel seats, polychloroprene weighted balls, Santoprene diaphragms and PTFE o-rings
- EN 2.1 material certification
- Strong Performance
- Flow rates up to 40 gpm (155 lpm)
- Fluid pressure to 120 psi (8.27 bar, 0.83 Mpa)
- Handles solids and abrasive materials
- Shear sensitive for safe transfer
Specifications & Documents
Technical Specifications
Convert to Metric| Air Exhaust Port Size (in) | 3/4 |
|---|---|
| Air Exhaust Port Thread Gender | Female |
| Air Exhaust Port Thread Type | NPT |
| Air Inlet Size (in) | 1/2 |
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| Application | Beverage |
| Ball Material | Polychloroprene Weighted |
| Center Section Material | Aluminum |
| Compressor Required | Yes |
| Configuration Code | 1050FG-PA01AS16SSCWSP |
| Connection Type | Tri-Clamp |
| Diaphragm Material | Santoprene |
| Fluid Passage Size (cm) | 2.54 |
| Fluid Passage Size (in) | 1 |
| Fluid Passage Size (mm) | 25.4 |
| Fluid Section Material | 316 Stainless Steel |
| Hazardous Location Approval | ATEX, IECEx |
| Manifold Configuration | End Port |
| Manifold O-Ring Material | PTFE |
| Material | Stainless Steel |
| Material Certification | EN 1024:2004 Type 2.1 (Standard) |
| Maximum Air Consumption (SCFM) | 50 |
| Maximum Air Pressure (MPa) | 0.83 |
| Maximum Air Pressure (psi) | 120 |
| Maximum Cycle Rate (CPM) | 256 |
| Maximum Flow Rate (GPM) | 41 |
| Maximum Fluid Operating Temperature (°C) | 80 |
| Maximum Fluid Operating Temperature (°F) | 176 |
| Maximum Fluid Pressure (MPa) | 0.8 |
| Maximum Fluid Pressure (psi) | 120 |
| Maximum Solid Size (in) | 1/8 |
| Minimum Fluid Operating Temperature (°C) | -10 |
| Minimum Fluid Operating Temperature (°F) | 14 |
| Model | SaniForce |
| Overall Height (in) | 15.48 |
| Power Source | Pneumatic |
| Pump Ratio | 1:1 |
| Pump Type | FDA Grade |
| Seat Material | 316 Stainless Steel |
| Series | 1050 BV |
| Standards Met | FDA Compliant Materials |
| Surface Finish | 125 Ra |
| Tri-Clamp Connection Size | 1.5-inch |
| Type | Pneumatic Diaphragm Pump |
| Weight (lb) | 60.4 |
| Air Exhaust Port Size (in) | 3/4 |
| Air Exhaust Port Thread Gender | Female |
| Air Exhaust Port Thread Type | NPT |
| Air Inlet Size (in) | 1/2 |
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| Application | Beverage |
| Ball Material | Polychloroprene Weighted |
| Center Section Material | Aluminum |
| Compressor Required | Yes |
| Configuration Code | 1050FG-PA01AS16SSCWSP |
| Connection Type | Tri-Clamp |
| Diaphragm Material | Santoprene |
| Fluid Passage Size (cm) | 2.54 |
| Fluid Passage Size (in) | 1 |
| Fluid Passage Size (mm) | 25.4 |
| Fluid Section Material | 316 Stainless Steel |
| Hazardous Location Approval | ATEX, IECEx |
| Manifold Configuration | End Port |
| Manifold O-Ring Material | PTFE |
| Material | Stainless Steel |
| Material Certification | EN 1024:2004 Type 2.1 (Standard) |
| Maximum Air Pressure (MPa) | 0.83 |
| Maximum Air Pressure (bar) | 8 |
| Maximum Air Pressure (kPa) | 800 |
| Maximum Air Pressure (psi) | 120 |
| Maximum Cycle Rate (CPM) | 256 |
| Maximum Flow Rate (L/min) | 155 |
| Maximum Fluid Operating Temperature (°C) | 80 |
| Maximum Fluid Operating Temperature (°F) | 176 |
| Maximum Fluid Pressure (MPa) | 0.8 |
| Maximum Fluid Pressure (bar) | 8 |
| Maximum Fluid Pressure (kPa) | 800 |
| Maximum Fluid Pressure (psi) | 120 |
| Maximum Solid Size (cm) | 0.32 |
| Maximum Solid Size (mm) | 3.2 |
| Minimum Fluid Operating Temperature (°C) | -10 |
| Minimum Fluid Operating Temperature (°F) | 14 |
| Model | SaniForce |
| Power Source | Pneumatic |
| Pump Ratio | 1:1 |
| Pump Type | FDA Grade |
| Seat Material | 316 Stainless Steel |
| Series | 1050 BV |
| Standards Met | FDA Compliant Materials |
| Surface Finish | 125 Ra |
| Tri-Clamp Connection Size | 1.5-inch |
| Type | Pneumatic Diaphragm Pump |
