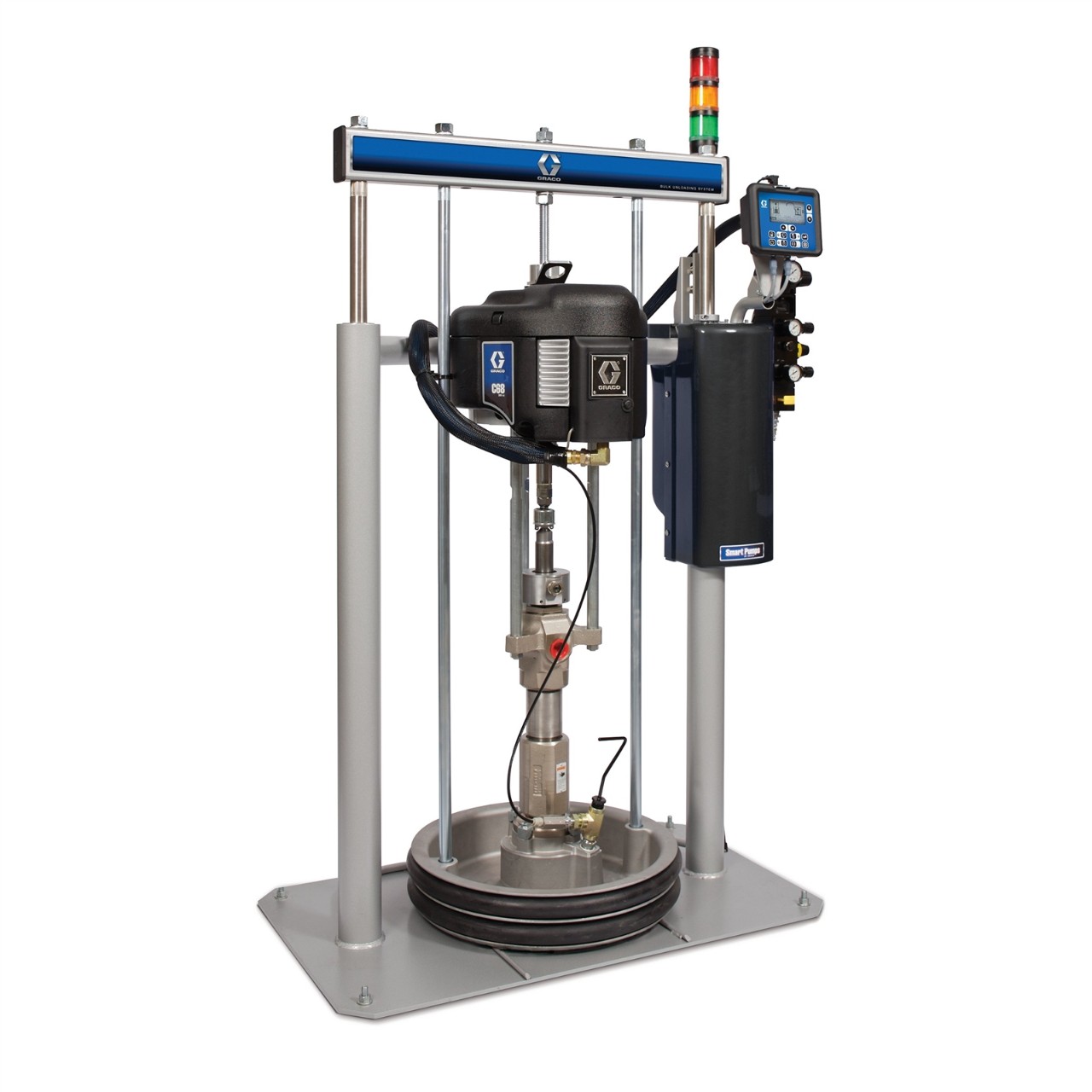

Dura-Flo D200

57:1 Ratio 200 L 3.0 RAM Supply Unit

Part Number: GDCA59

product image product image

Dura-Flo D200

57:1 Ratio 200 L 3.0 RAM Supply Unit

Part Number: GDCA59

Graco Supply Systems reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials from pails or drums to metering and dispensing systems.

Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure

Graco Supply Systems reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials from pails or drums to metering and dispensing systems.

Bulk unloaders for ambient sealants, adhesives and other medium to high-viscosity materials

  • For large drums up to 200 liter (55 gal)
  • Graco D200 - For high-volume in-plant applications
  • Industry-first controls give you immediate and important information at the touch of a button
  • Quick placement of drum
  • Platen wipers can be replaced in seconds
  • Pump's quick-disconnect coupler, turnbuckle mount and pump cartridge packings let you service the pump without removing it from the ram
  • High-quality, durable parts reduce maintenance time, maximize uptime

Specifications & Documents

Technical Specifications

Convert to Metric
Ambient/Warm Melt/Hot Melt Ambient
Application Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill
Construction Stainless Steel, Tungsten Carbide, PTFE, Glass-Filled PTFE, EPDM, Aluminum, Zinc-Plated Carbon Steel
Container Type Drum
Material Container Volume (gal) 52.8
Maximum Air Inlet Pressure (psi) 150
Maximum Flow Rate (GPM) 3.4
Maximum Fluid Pressure (psi) 5700
Maximum Height (ft) 3.33
Maximum Height (in) 40
Maximum Operating Temperature (°F) 120
Minimum Height (ft) 5.4
Minimum Height (in) 64.8
Model Dura-Flo
Overall Depth (in) 25
Overall Width (in) 42
Power Type Pneumatic
Pump Ratio 57:1
Pump Type Double Ball
Ram Material Carbon Steel
Series D200
Type Supply Unit
Ambient/Warm Melt/Hot Melt Ambient
Application Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill
Construction Stainless Steel, Tungsten Carbide, PTFE, Glass-Filled PTFE, EPDM, Aluminum, Zinc-Plated Carbon Steel
Container Type Drum
Material Container Volume (l) 200
Maximum Air Inlet Pressure (bar) 10.34
Maximum Air Inlet Pressure (kPa) 1034
Maximum Air Inlet Pressure (kg/cm²) 10.55
Maximum Air Inlet Pressure (psi) 150
Maximum Flow Rate (L/min) 12.9
Maximum Fluid Pressure (bar) 393
Maximum Fluid Pressure (kPa) 39300
Maximum Fluid Pressure (psi) 5700
Maximum Height (cm) 101.6
Maximum Height (m) 1.02
Maximum Height (mm) 1016
Maximum Operating Temperature (°C) 49
Minimum Height (cm) 164.6
Minimum Height (m) 1.65
Minimum Height (mm) 1646
Model Dura-Flo
Overall Depth (cm) 63.5
Overall Depth (mm) 635
Overall Width (cm) 106.7
Overall Width (mm) 1067
Power Type Pneumatic
Pump Ratio 57:1
Pump Type Double Ball
Ram Material Carbon Steel
Series D200
Type Supply Unit
