Dura-Flo

21:1 - 580cc Dura-Flo Pump with NXT 6500 Air Motor, Severe Duty Stainless Steel Construction

Part Number: P22LSS

product image product image product image

Dura-Flo

21:1 - 580cc Dura-Flo Pump with NXT 6500 Air Motor, Severe Duty Stainless Steel Construction

Part Number: P22LSS

Graco’s Xtreme and Dura-Flo pumps with NXT technology provide uniform and easy to control delivery. Ideal for supply applications, these durable pumps feature an NXT motor and can now achieve an even higher range of pressures without compromising flow.

Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure

Graco’s Xtreme and Dura-Flo pumps with NXT technology provide uniform and easy to control delivery. Ideal for supply applications, these durable pumps feature an NXT motor and can now achieve an even higher range of pressures without compromising flow.

  • Positive displacement, 2 ball piston design provides uniform and easily controlled delivery
  • High pump pressure and flow performance to handle a broad range of paints and coatings
  • Improved serviceability with fewer parts, faster repairs and lower ownership cost
  • NXT Air Motor

    • Modular design for easier maintenance
    • Rugged body armor won’t rust or dent
    • Highest technology air motor on the market
    • Low Noise exhaust style
  • Modular Air Valve

    • De-icing controls standard
    • Up to 50% quieter than previous models
    • Modular air valve - reduces stalling, easy-to-repair
  • Optional Integrated Air Controls

    • Lockable easy-turn regulator
    • Front-mounted for convenient access
    • Compact and modular
    • Built-in filtration
  • Optional DataTrak™ Control

    • Runaway protection
    • Pump diagnostics
    • Material usage

Specifications & Documents

Technical Specifications

Convert to Metric
Ambient/Warm Melt/Hot Melt Ambient
Application Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill
Compatible Material CARC, High Solids, Metallics, Solventborne, Stains, Varnish, Xirallic
Fluid Inlet Size (in) 2
Fluid Inlet Thread Gender Female
Fluid Inlet Thread Type NPT
Fluid Outlet Size (in) 1-1/2
Fluid Outlet Thread Gender Male
Fluid Outlet Thread Type NPT
Includes Motor, Lower, Rod Tie, Collar Coupling, Adaptor, Nut Coupling, Nut Hex, Wrench
Material Stainless Steel
Maximum Working Pressure (MPa) 15.7
Maximum Working Pressure (psi) 2270
Model Dura-Flo
Power Type Pneumatic
Pump Ratio 22:1
Type Piston Pump Package
Ambient/Warm Melt/Hot Melt Ambient
Application Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill
Compatible Material CARC, High Solids, Metallics, Solventborne, Stains, Varnish, Xirallic
Fluid Inlet Size (in) 2
Fluid Inlet Size (mm) 50.8000
Fluid Inlet Thread Gender Female
Fluid Inlet Thread Type NPT
Fluid Outlet Size (in) 1-1/2
Fluid Outlet Thread Gender Male
Fluid Outlet Thread Type NPT
Includes Motor, Lower, Rod Tie, Collar Coupling, Adaptor, Nut Coupling, Nut Hex, Wrench
Material Stainless Steel
Maximum Working Pressure (MPa) 15.7
Maximum Working Pressure (bar) 157
Maximum Working Pressure (kPa) 15700
Maximum Working Pressure (psi) 2270
Model Dura-Flo
Power Type Pneumatic
Pump Ratio 22:1
Type Piston Pump Package

Product Manuals

Sales Literature

344905EN Supply Pumps Brochure (501 KB)
(English Only)

Repair Parts

Part No. Description

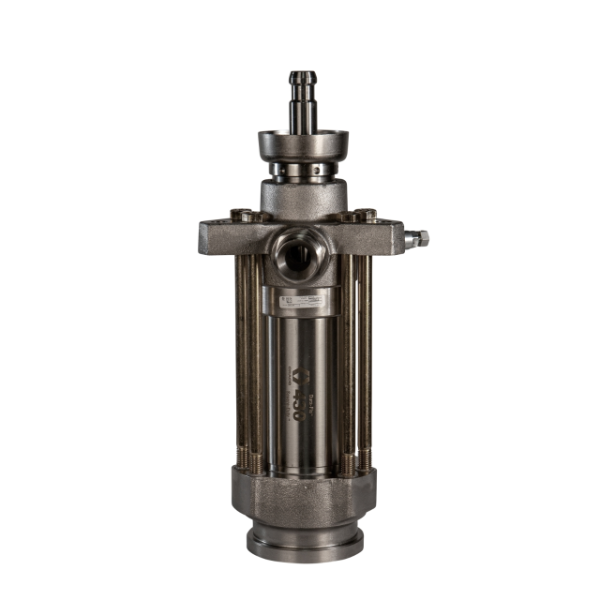

L580SS Dura-Flo 2400 (580 cc) Lower, Stainless Steel, 3 UHMWPE/2 PTFE Packings
N65LN0 NXT Air Motor, 6500 cc, Low Noise Exhaust, No Monitoring
