Dura-Flo

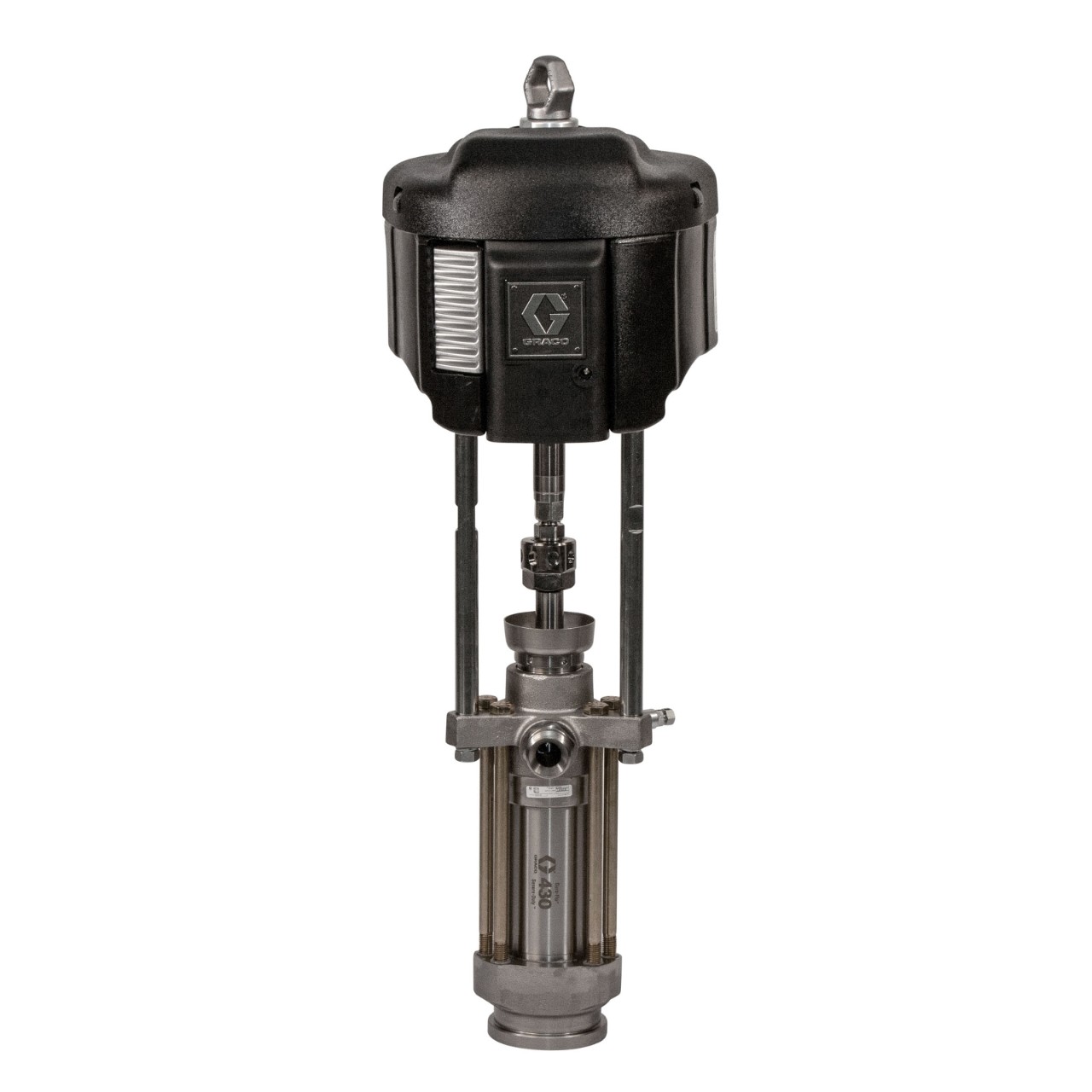

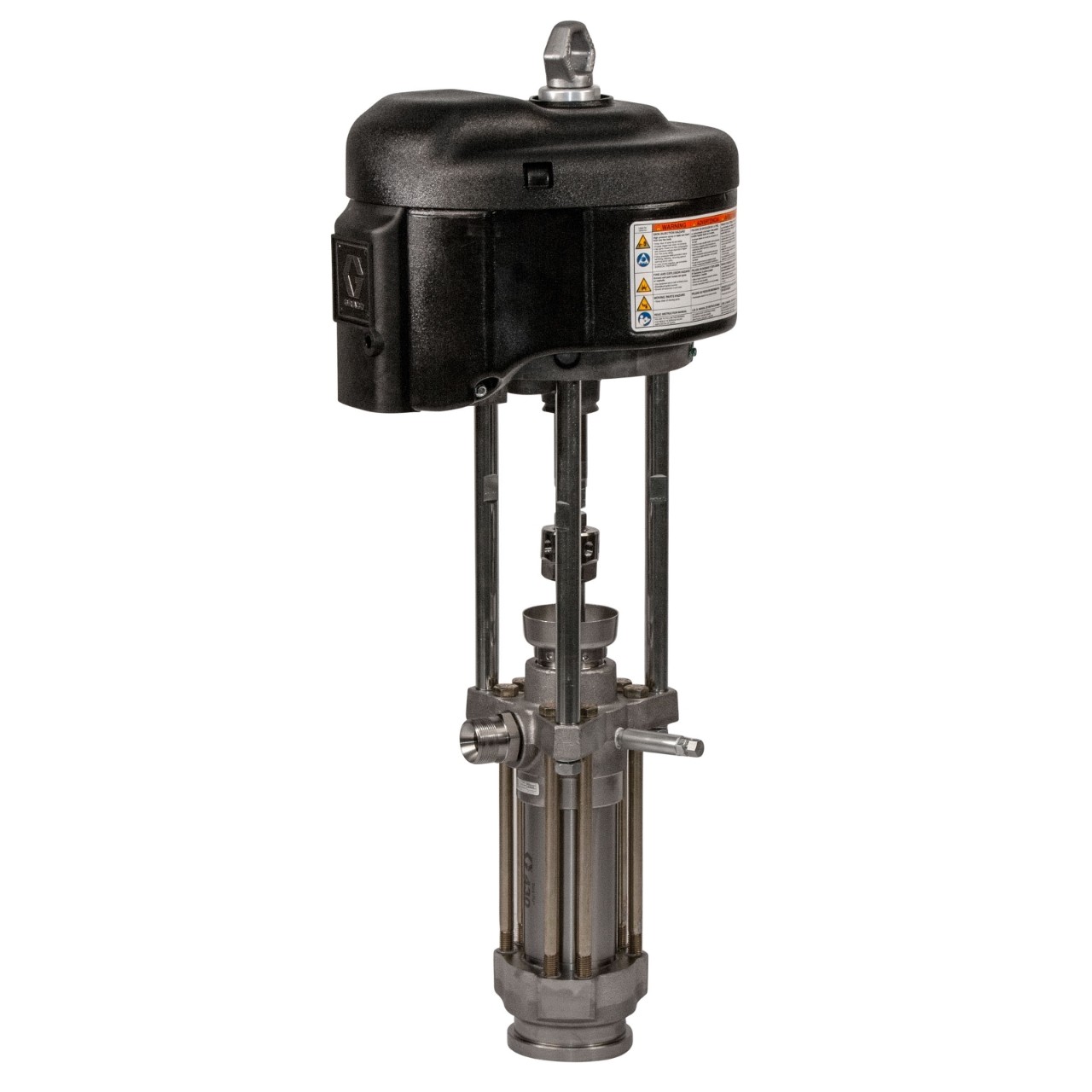

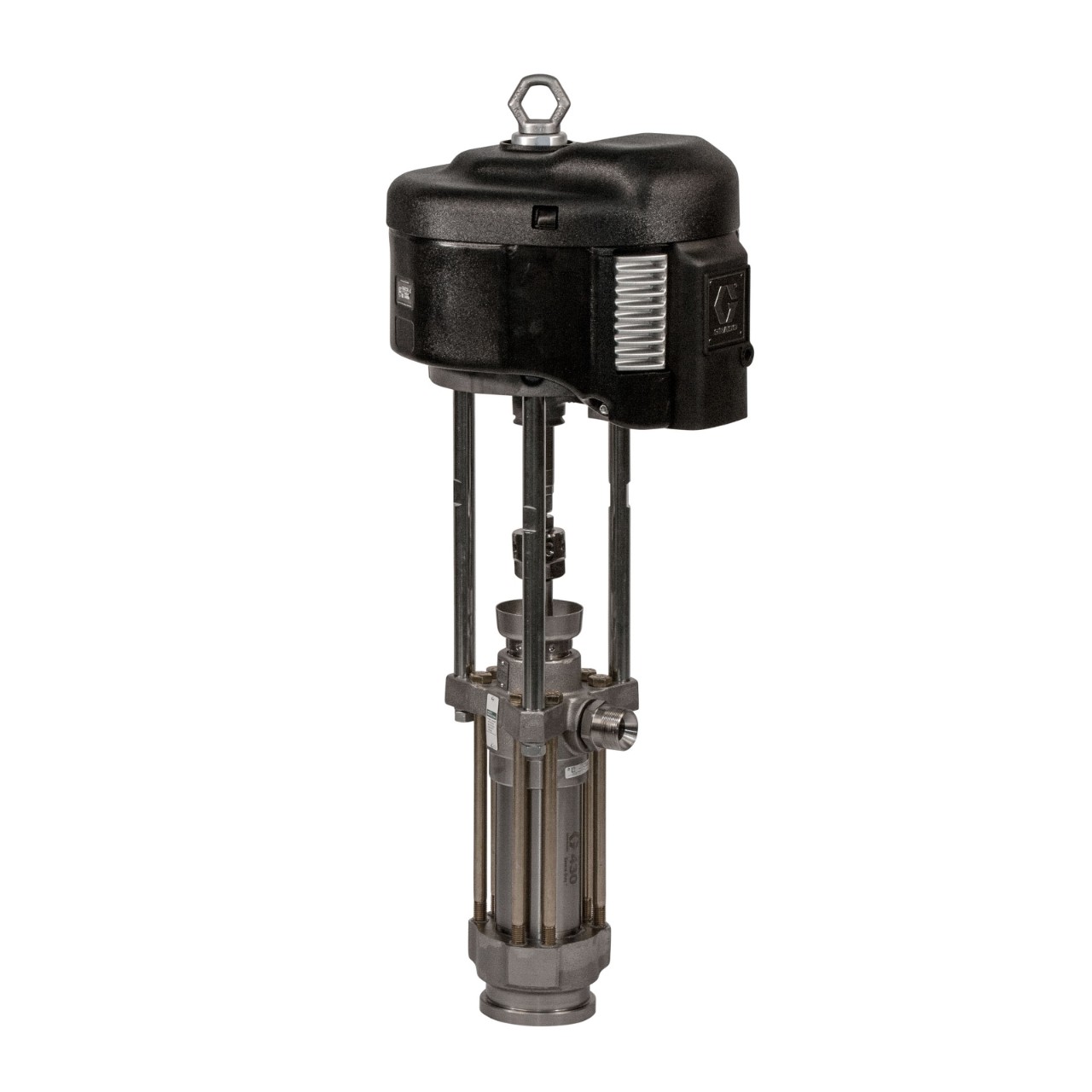

15:1 - 430cc Dura-Flo Pump with NXT 3400 Air Motor, Severe Duty Stainless Steel Construction

P15LSS

Dura-Flo

15:1 - 430cc Dura-Flo Pump with NXT 3400 Air Motor, Severe Duty Stainless Steel Construction

P15LSS

Graco Supply Pumps reliably deliver one-component sealants, adhesives and other low to medium-viscosity materials to metering and dispensing systems. Maximize your plant's production capacity.

Features

Product Brochure

Graco Supply Pumps reliably deliver one-component sealants, adhesives and other low to medium-viscosity materials to metering and dispensing systems. Maximize your plant's production capacity.

Long-lasting durability - Dura-Flo pumps are a time-tested, proven performer

  • NXT 3400 Air Motor
    • Low Noise
    • Modular design for easier maintenance
    • Rugged body armor won't rust or dent
    • Highest technology air motor on the market
  • 430cc Dura-Flo Lower
    • Severe Duty coatings on rods and cylinder Extends production time
  • Standard Threaded Coupler -

  • Replaceable 1 1/2"-11 1/2 NPT Male Outlet Fitting

    • Reduces repair costs
  • Replaceable Seat

    • Minimizes service costs
  • Cast Outlet and Inlet Housing

    • Improves structural integrity
  • Optional DataTrak™ Control

    • Runaway protection
    • Pump diagnostics
    • Material usage

Specifications & Documents

Technical Specifications

Convert to Metric
Ambient/Warm Melt/Hot Melt Ambient
Application Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill
Compatible Material CARC, High Solids, Metallics, Solventborne, Stains, Varnish, Xirallic
Fluid Inlet Size (in) 2
Fluid Inlet Thread Gender Female
Fluid Inlet Thread Type NPT
Fluid Outlet Size (in) 1-1/2
Fluid Outlet Thread Gender Male
Fluid Outlet Thread Type NPT
Includes Motor, Lower, Rod Tie, Collar Coupling, Adaptor, Nut Coupling, Nut Hex, Wrench
Material Stainless Steel
Maximum Working Pressure (MPa) 10.9
Maximum Working Pressure (psi) 1580
Power Type Pneumatic
Pump Ratio 15:1
Type Piston Pump Package
Ambient/Warm Melt/Hot Melt Ambient
Application Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill
Compatible Material CARC, High Solids, Metallics, Solventborne, Stains, Varnish, Xirallic
Fluid Inlet Size (cm) 5.0800
Fluid Inlet Size (mm) 50.8000
Fluid Inlet Thread Gender Female
Fluid Inlet Thread Type NPT
Fluid Outlet Thread Gender Male
Fluid Outlet Thread Type NPT
Includes Motor, Lower, Rod Tie, Collar Coupling, Adaptor, Nut Coupling, Nut Hex, Wrench
Material Stainless Steel
Maximum Working Pressure (MPa) 10.9
Maximum Working Pressure (bar) 109
Maximum Working Pressure (kPa) 10900
Power Type Pneumatic
Pump Ratio 15:1
Type Piston Pump Package

Repair Parts

Part No. Description
N34DT0 NXT Air Motor, 3400 cc, De-Icing Exhaust, DataTrak
L430SS Dura-Flo 1800 (430 cc) Lower, Stainless Steel, 3 UHMWPE/2 PTFE Packings
