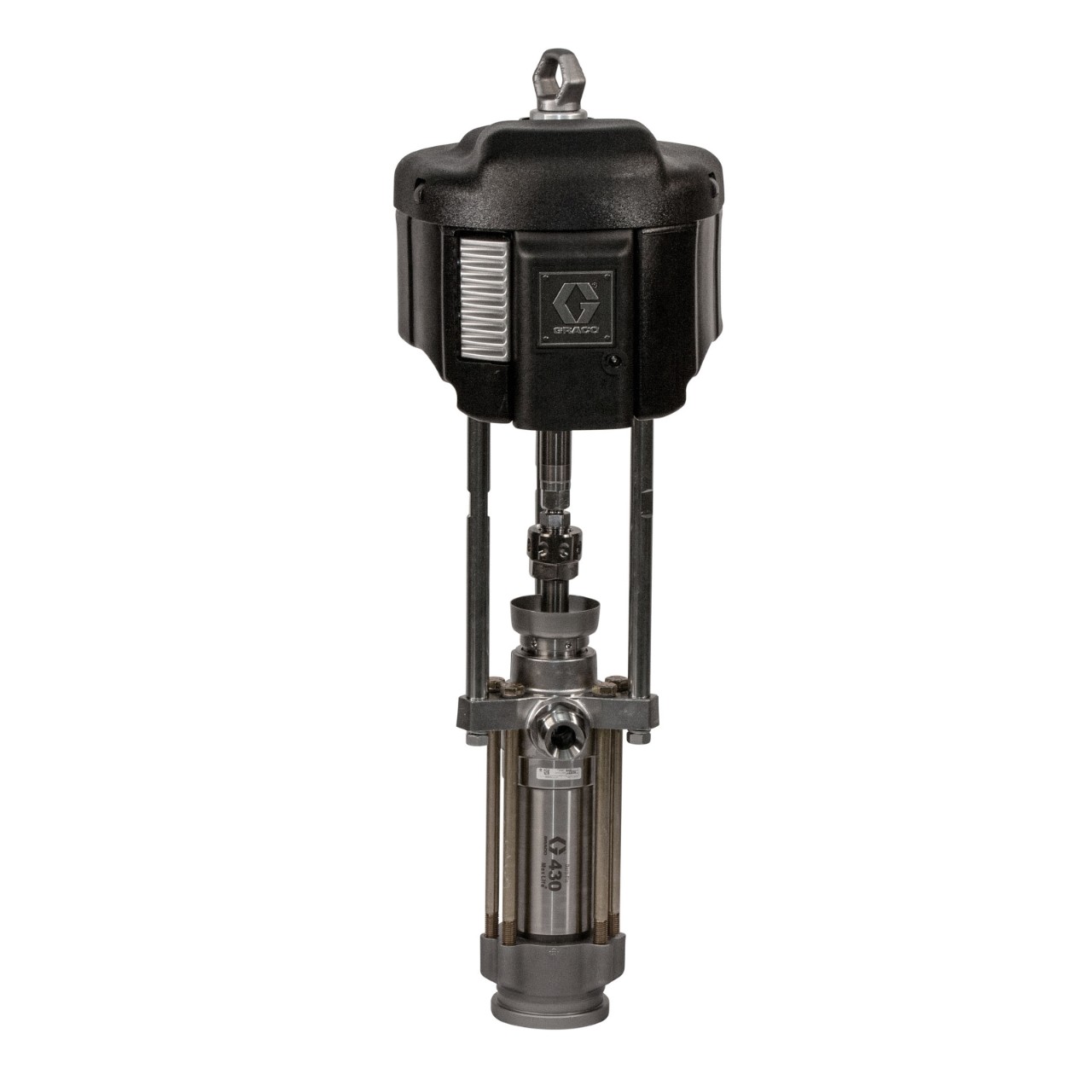

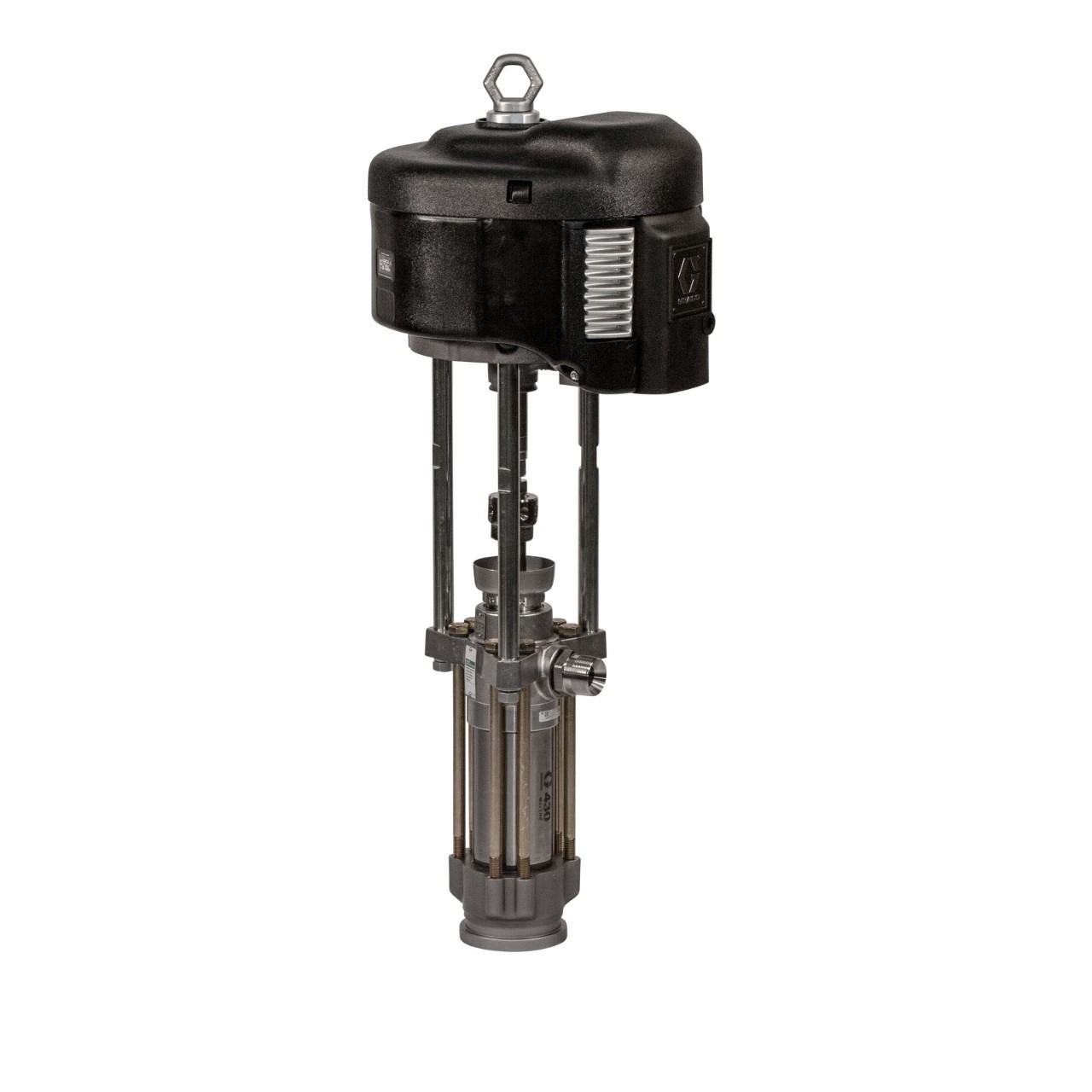

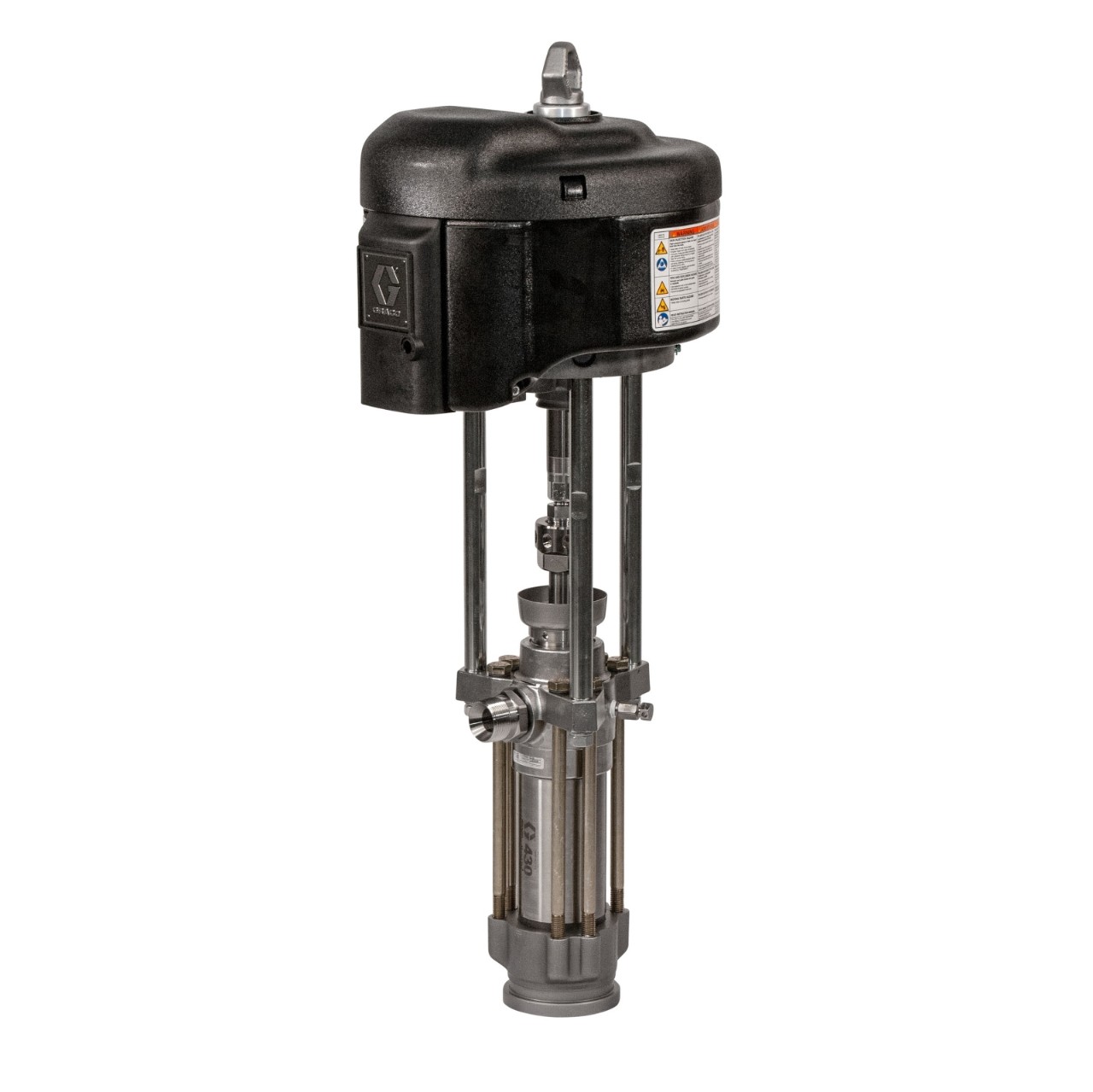

Stainless Steel Dura-Flo 430 cc Pump with 6500 NXT Motor

P32LSM

Dura-Flo

Stainless Steel Dura-Flo 430 cc Pump with 6500 NXT Motor

P32LSM

Graco’s Xtreme and Dura-Flo pumps with NXT technology provide uniform and easy to control delivery. Ideal for supply applications, these durable pumps feature an NXT motor and can now achieve an even higher range of pressures without compromising flow.

Features

Product Brochure

Graco’s Xtreme and Dura-Flo pumps with NXT technology provide uniform and easy to control delivery. Ideal for supply applications, these durable pumps feature an NXT motor and can now achieve an even higher range of pressures without compromising flow.

  • Positive displacement, 2 ball piston design provides uniform and easily controlled delivery
  • High pump pressure and flow performance to handle a broad range of paints and coatings
  • Improved serviceability with fewer parts, faster repairs and lower ownership cost
  • NXT Air Motor

    • Modular design for easier maintenance
    • Rugged body armor won’t rust or dent
    • Highest technology air motor on the market
    • Low Noise exhaust style
  • Modular Air Valve

    • De-icing controls standard
    • Up to 50% quieter than previous models
    • Modular air valve - reduces stalling, easy-to-repair
  • Optional Integrated Air Controls

    • Lockable easy-turn regulator
    • Front-mounted for convenient access
    • Compact and modular
    • Built-in filtration
  • Optional DataTrak™ Control

    • Runaway protection
    • Pump diagnostics
    • Material usage

Specifications

Technical Specifications

Convert to Metric
Ambient/Warm Melt/Hot Melt Ambient
Application Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill
Compatible Material CARC, High Solids, Metallics, Solventborne, Stains, Varnish, Xirallic
Fluid Inlet Size (in) 2
Fluid Inlet Thread Gender Female
Fluid Inlet Thread Type NPT
Fluid Outlet Size (in) 1-1/2
Fluid Outlet Thread Gender Male
Fluid Outlet Thread Type NPT
Includes Motor, Lower, Rod Tie, Collar Coupling, Adaptor, Nut Coupling, Nut Hex, Wrench
Material Stainless Steel
Maximum Working Pressure (MPa) 20.9
Maximum Working Pressure (psi) 3030
Power Type Pneumatic
Pump Ratio 32:1
Type Piston Pump Package
Ambient/Warm Melt/Hot Melt Ambient
Application Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill
Compatible Material CARC, High Solids, Metallics, Solventborne, Stains, Varnish, Xirallic
Fluid Inlet Size (cm) 5.0800
Fluid Inlet Size (mm) 50.8000
Fluid Inlet Thread Gender Female
Fluid Inlet Thread Type NPT
Fluid Outlet Thread Gender Male
Fluid Outlet Thread Type NPT
Includes Motor, Lower, Rod Tie, Collar Coupling, Adaptor, Nut Coupling, Nut Hex, Wrench
Material Stainless Steel
Maximum Working Pressure (MPa) 20.9
Maximum Working Pressure (bar) 209
Maximum Working Pressure (kPa) 20900
Power Type Pneumatic
Pump Ratio 32:1
Type Piston Pump Package

Repair Parts

Part No. Description
N65LN0 NXT Air Motor, 6500 cc, Low Noise Exhaust, No Monitoring

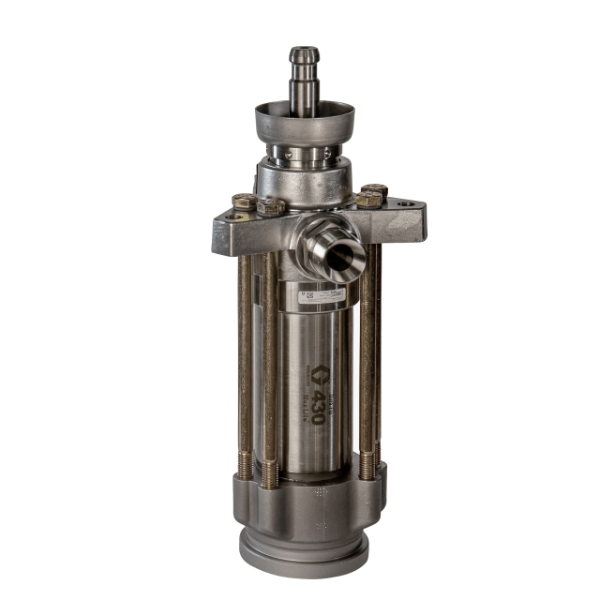

L430SM Dura-Flo 1800 (430 cc) Lower, Stainless Steel, 4 Leather, 3 UHMWPE Throat/3 UHMWPE, 2 Leather Piston Packings
