XM PFP

XM PFP Sprayer System, Non-Hazardous Location, 1.5:1 to 4:1 Ratio Range, Heated Hose Bundle

24W626

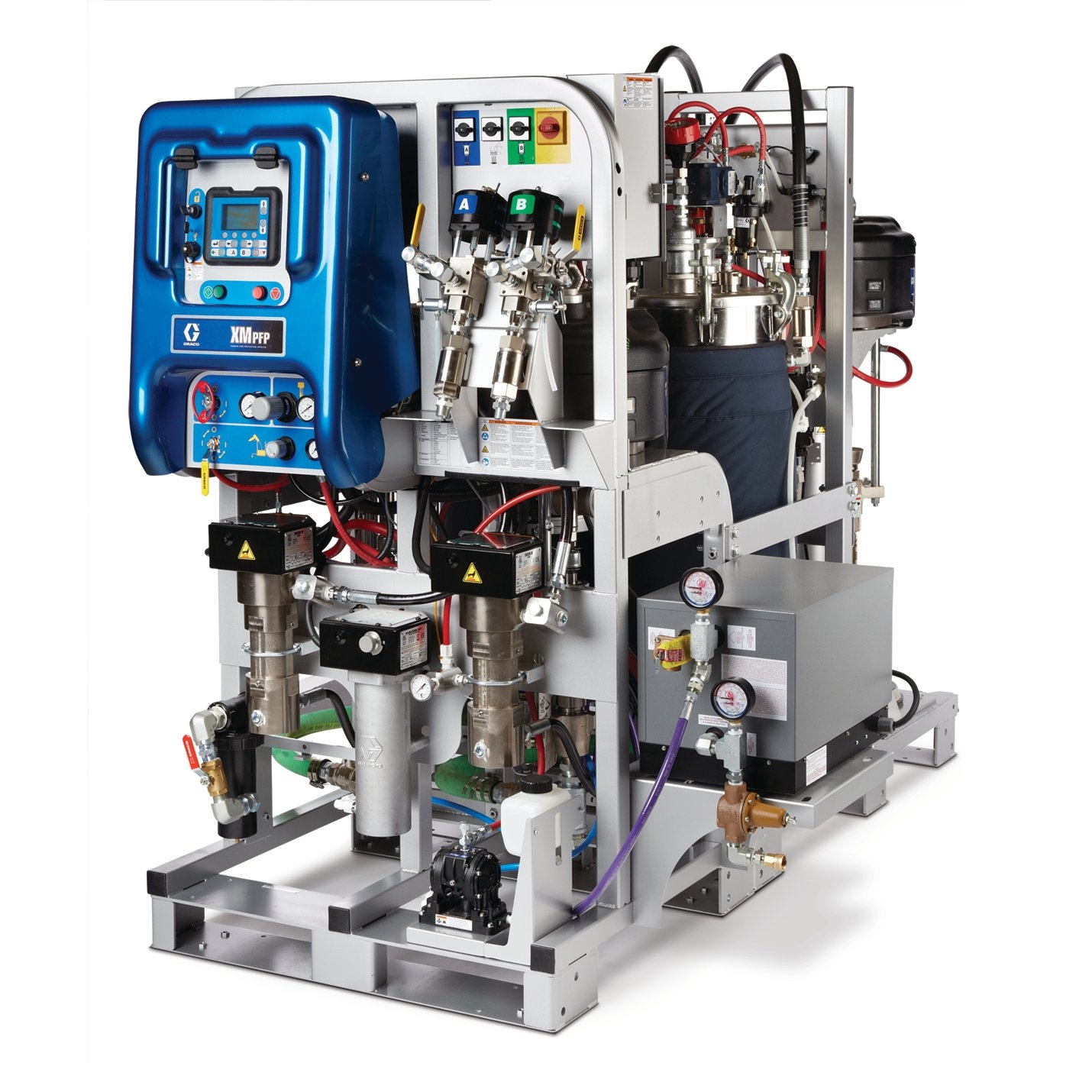

xm-pfp-old-hw-flush-no-hose-gun-non-haz-left_sqrd

XM PFP

XM PFP Sprayer System, Non-Hazardous Location, 1.5:1 to 4:1 Ratio Range, Heated Hose Bundle

24W626

Passive fire protection (PFP) coatings make structures more resistant to fire by insulating structural steel from high temperatures and as a result, buy time for the evacuation before structural collapse. The Graco XM PFP Plural-Component Sprayer offers data reporting technology, so you can confirm ...

More Info

Features

Passive fire protection (PFP) coatings make structures more resistant to fire by insulating structural steel from high temperatures and as a result, buy time for the evacuation before structural collapse. The Graco XM PFP Plural-Component Sprayer offers data reporting technology, so you can confirm that epoxy intumescent coatings are sprayed on-ratio, at requirements set by the manufacturer. The XM PFP is easy to use, maintains consistent temperature control and offers precise ratio control.

Specifications

Technical Specifications

Convert to Metric
Air Inlet Size (in) 1
Air Inlet Thread Gender Female
Air Inlet Thread Type NPT
Amperage (A) 63, 40
Applicator Type Manual
Compatible Material Intumescent Fireproofing Epoxy
Component Type Plural-Component
Flush Type Hot Water, Solvent
Gun Type Airless Gun
Hose Length (ft) 67
Includes Heated PFP Hose
Maximum Flow Rate (GPM) 3
Maximum Flow Rate (cc/min) 11360
Maximum Hose Length (ft) 300
Maximum Mix Ratio 1.5:1
Maximum Spray Pressure (MPa) 41.4
Maximum Spray Pressure (psi) 6000
Maximum Working Pressure (MPa) 41
Maximum Working Pressure (psi) 6000
Measuring Type Positive Displacement, Dosing Valve
Minimum Mix Ratio 1:1
Mix Accuracy (%) +/- 5
Mix Ratio 1:1-1.5:1
Number of Catalysts 1
Number of Reducers 0
Number of Resin Colors 1
Number of Tanks 2
Overall Depth (in) 52, 104
Overall Height (in) 70, 84
Overall Width (in) 38, 76
Phase 3
Power Rating (HP) 25.21
Power Rating (W) 18800
Power Rating (kW) 18.8
Power Source Electric, Air
Product Type Plural Component
Sound Pressure Level (dB(A)) 86
Tank Capacity (gal) 20
Type Plural Component Sprayer
Wetted Material Aluminum, Stainless Steel, Carbide, PTFE, UHMWPE, Nylon, Carbon Steel, Alloy Steel, Zinc Plating, Nickel Plating, Ductile Iron, Tungsten Carbide, Polyethylene, Leather
Air Inlet Size (cm) 2.54
Air Inlet Size (mm) 25.4
Air Inlet Thread Gender Female
Air Inlet Thread Type NPT
Amperage (A) 63, 40
Applicator Type Manual
Compatible Material Intumescent Fireproofing Epoxy
Component Type Plural-Component
Flush Type Hot Water, Solvent
Gun Type Airless Gun
Hose Length (m) 20.4216
Includes Heated PFP Hose
Maximum Flow Rate (L/min) 11.36
Maximum Flow Rate (cc/min) 11360
Maximum Hose Length (m) 91.44
Maximum Mix Ratio 1.5:1
Maximum Spray Pressure (MPa) 41.4
Maximum Spray Pressure (bar) 413.7
Maximum Spray Pressure (kPa) 41370
Maximum Working Pressure (MPa) 41
Maximum Working Pressure (bar) 414
Maximum Working Pressure (kPa) 41400
Measuring Type Positive Displacement, Dosing Valve
Minimum Mix Ratio 1:1
Mix Accuracy (%) +/- 5
Mix Ratio 1:1-1.5:1
Number of Catalysts 1
Number of Reducers 0
Number of Resin Colors 1
Number of Tanks 2
Overall Depth (cm) 132, 264
Overall Depth (mm) 1320, 2640
Overall Height (cm) 177.8, 213.4
Overall Height (mm) 1778, 2134
Overall Width (cm) 96.5, 193
Overall Width (mm) 965, 1930
Phase 3
Power Rating (HP) 25.21
Power Rating (W) 18800
Power Rating (kW) 18.8
Power Source Electric, Air
Product Type Plural Component
Sound Pressure Level (dB(A)) 86
Tank Capacity (L) 76
Type Plural Component Sprayer
Wetted Material Aluminum, Stainless Steel, Carbide, PTFE, UHMWPE, Nylon, Carbon Steel, Alloy Steel, Zinc Plating, Nickel Plating, Ductile Iron, Tungsten Carbide, Polyethylene, Leather
