E-Flo 4-Ball

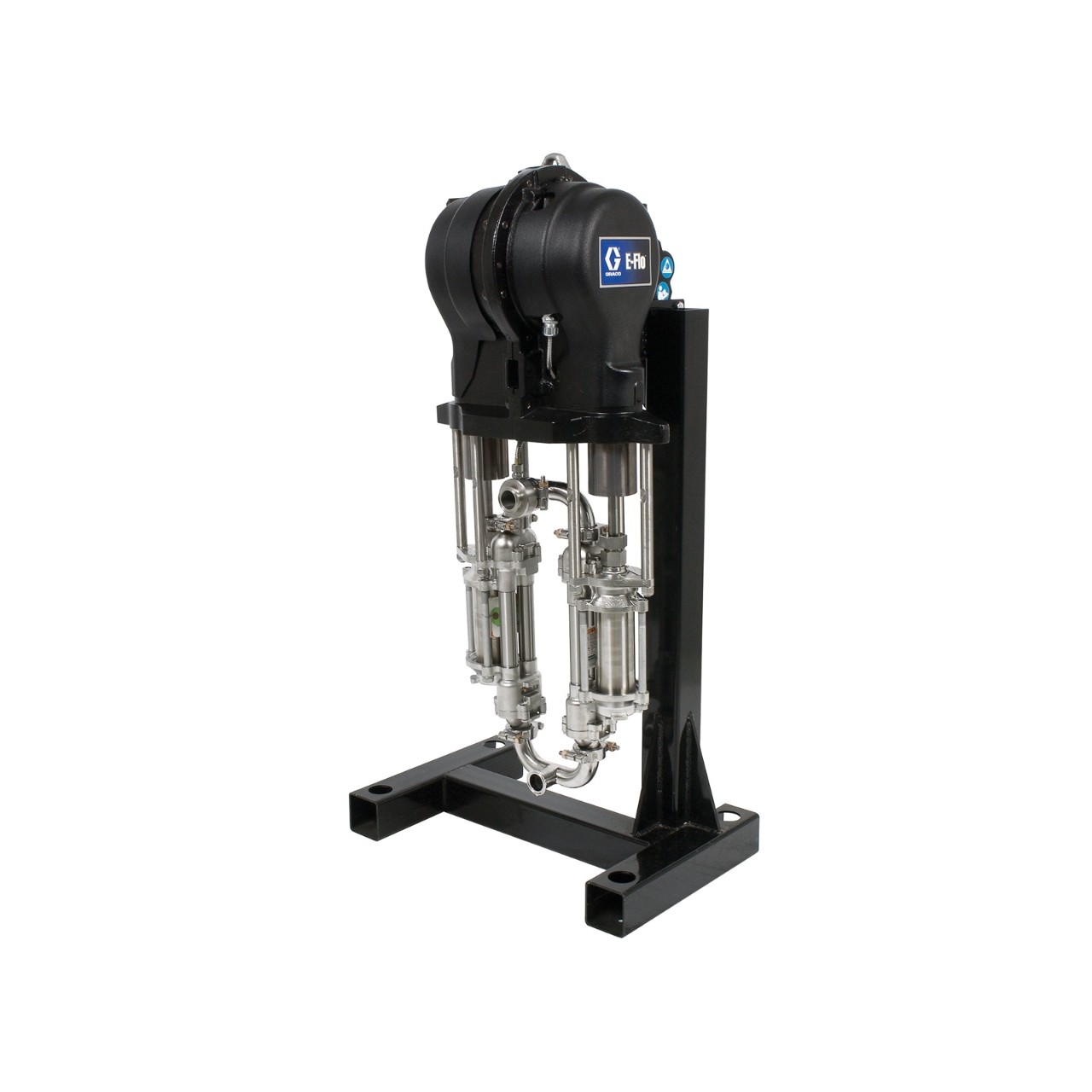

E-Flo 4-Ball Electric Circulation Pump, 3000cc, Sealed, Ultralife Rod/Cylinder, Tri-Clamp, Stand
Part Number: EP01B1
Image is for illustrative purposes only.
E-Flo 4-Ball
E-Flo 4-Ball Electric Circulation Pump, 3000cc, Sealed, Ultralife Rod/Cylinder, Tri-Clamp, Stand
Part Number: EP01B1
The dual lower of the E-Flo electric circulating pump minimizes pressure changes at the outlet of the pump. Online maintenance simplifies repair and reduces downtime. Accomplish remote monitoring of performance via computer or PLC for a higher degree of control.
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
The dual lower of the E-Flo electric circulating pump minimizes pressure changes at the outlet of the pump. Online maintenance simplifies repair and reduces downtime. Accomplish remote monitoring of performance via computer or PLC for a higher degree of control.
- Sealed lower has longer maintenance cycles, plus it can be used for every pumping application in your mix room, including catalyzed coatings
- 3 times more efficient than pneumatics
- Process control and feedback
- Slow smooth change overs
- Low noise
- Open wet cup version is also available
Specifications & Documents
Technical Specifications
Convert to Metric| Application | Circulation |
|---|---|
| Compatible Material | Solventborne, High Solids, Xirallic, Metallics, Varnish, CARC |
| Construction | Stainless Steel |
| Fluid Inlet Size (in) | 2 |
| Fluid Outlet Size (in) | 2 |
| Fluid Section Type | Sealed |
| Material | Stainless Steel |
| Maximum Continuous Cycle Rate (CPM) | 20 |
| Maximum Flow Rate (GPM) | 16.2 |
| Maximum Operating Temperature (°F) | 104 |
| Maximum Working Pressure (MPa) | 2.3 |
| Maximum Working Pressure (psi) | 330 |
| Minimum Operating Temperature (°F) | 32 |
| Model | E-Flo |
| Motor Type | None |
| Portable | Non-Portable |
| Series | 4-Ball |
| Type | Electric Piston Pump |
| Application | Circulation |
| Compatible Material | Solventborne, High Solids, Xirallic, Metallics, Varnish, CARC |
| Construction | Stainless Steel |
| Fluid Inlet Size (in) | 2 |
| Fluid Inlet Size (mm) | 50.8 |
| Fluid Outlet Size (in) | 2 |
| Fluid Outlet Size (mm) | 50.8 |
| Fluid Section Type | Sealed |
| Material | Stainless Steel |
| Maximum Continuous Cycle Rate (CPM) | 20 |
| Maximum Flow Rate (L/min) | 61.32 |
| Maximum Operating Temperature (°C) | 40 |
| Maximum Working Pressure (MPa) | 2.3 |
| Maximum Working Pressure (bar) | 23 |
| Maximum Working Pressure (kPa) | 2300 |
| Maximum Working Pressure (psi) | 330 |
| Minimum Operating Temperature (°C) | 0 |
| Model | E-Flo |
| Motor Type | None |
| Portable | Non-Portable |
| Series | 4-Ball |
| Type | Electric Piston Pump |
Product Manuals
311601C, 15H877 TDC Sensor Replacement Kit for E-Flo 4-Ball Piston Pump, English
(412 KB)
(English Only)
311604D, Instruction Manual for Crank Arm Rebuild Kit for E-Flo 4-Ball Piston Pump, English
(481 KB)
(English Only)
311605J - Motor Mounting Kits for E-Flo 4-Ball Piston Pumps, Instructions, English
(390 KB)
(English Only)
311616D, Slider Bearing Kit for E-Flo 4-Ball Piston Pump Instructions Manual, English
(481 KB)
(English Only)
Sales Literature
Certifications
MSD201EN, Loctite 567 Low Strength Thread Sealant, Safety Data Sheet, English
(141 KB)
(English Only)
Repair Parts
| Part No. | Description |
|---|---|
| 17K658 | Sealed 4-Ball Lower, 1500 cc, Stainless Steel, Ultralife Rod & Cylinder, Tri-Clamp Fittings |
| 15H873 | Drive Linkage Rebuild Kit |
| 15H874 | Slider Cylinder Rebuild Kit |
| 15H880 | Motor coupler kit- to install electric motors on E-Flo® 4-Ball Piston Pumps |
| 15H883 | Crank Arm Kit |
| 15J422 | Inlet/Outlet Fitting, converts 1-1/2 tri-clamp to 1-1/2 npt |
| 16C487 | Coupler Kit for NEMA 182-184 TC Frame 3 or 5 HP motors. Includes 2.25 in. (57.2 mm) key |
| 247341 | Slider Cylinder Collector Kit |
| 15H882 | Slider Bearing Kit |
| 24E453 | Motor Mounting Kit for IEC 112M/B5 and 100L/B5 Frame Electric Motors, includes motor adapter plate |
| 255216 | Wrist Pin Replacement Kit |
| 15H877 | TDC Sensor Kit |
| 15H878 | Manifold Gasket Kit |
| 15J926 | Output Shaft Seal Tool Kit |
| 24J305 | Sensor Circuit Option Kit for E-Flo Pumps (Series D and later) |
| 15K012 | Air pressure to the BPR Control Kit |
| 15H871 | Gear Reducer Seal Kit |
| 15H886 | Gear Reducer Replacement Kit for E-Flo 2000/3000/4000 Pumps |
| 15J639 | Inlet/Outlet Fitting, converts 1-1/2 tri-clamp to 2 tri-clamp |
| 24H372 | ACS Module for E-Flo Circulation Pumps |
